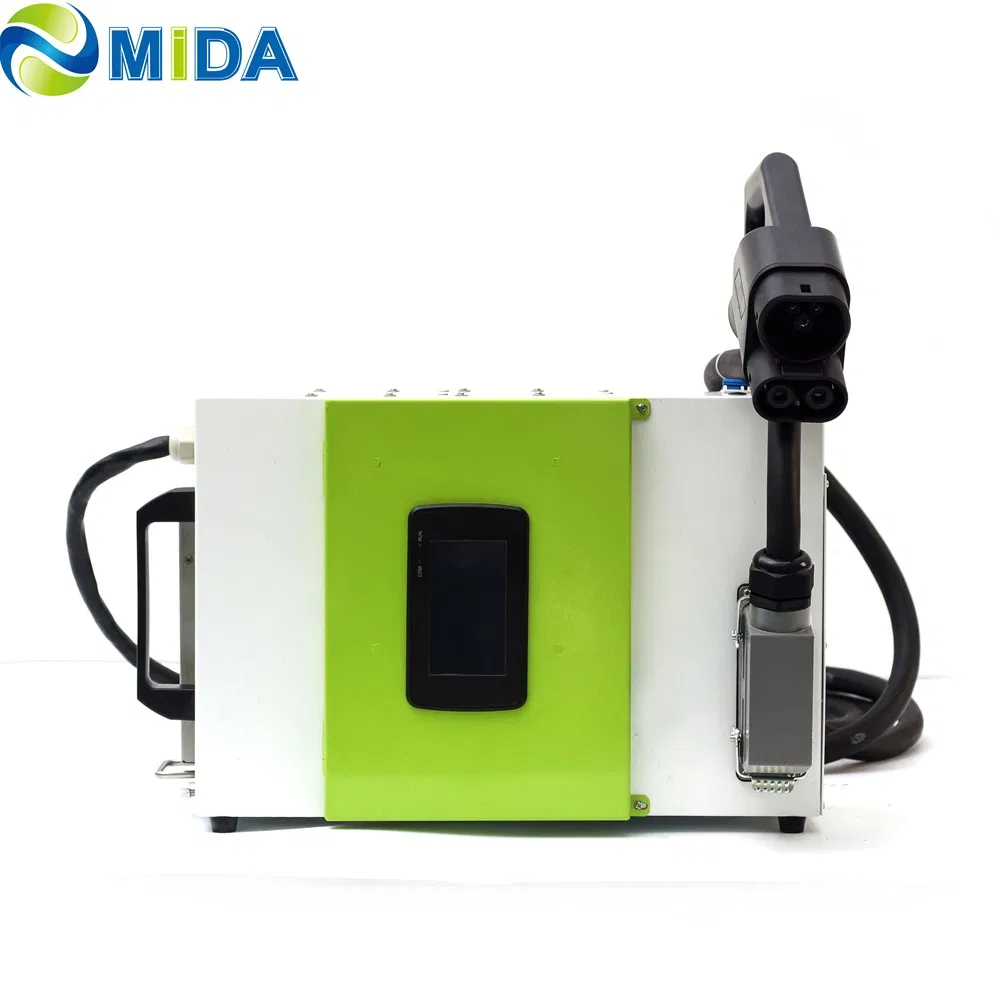

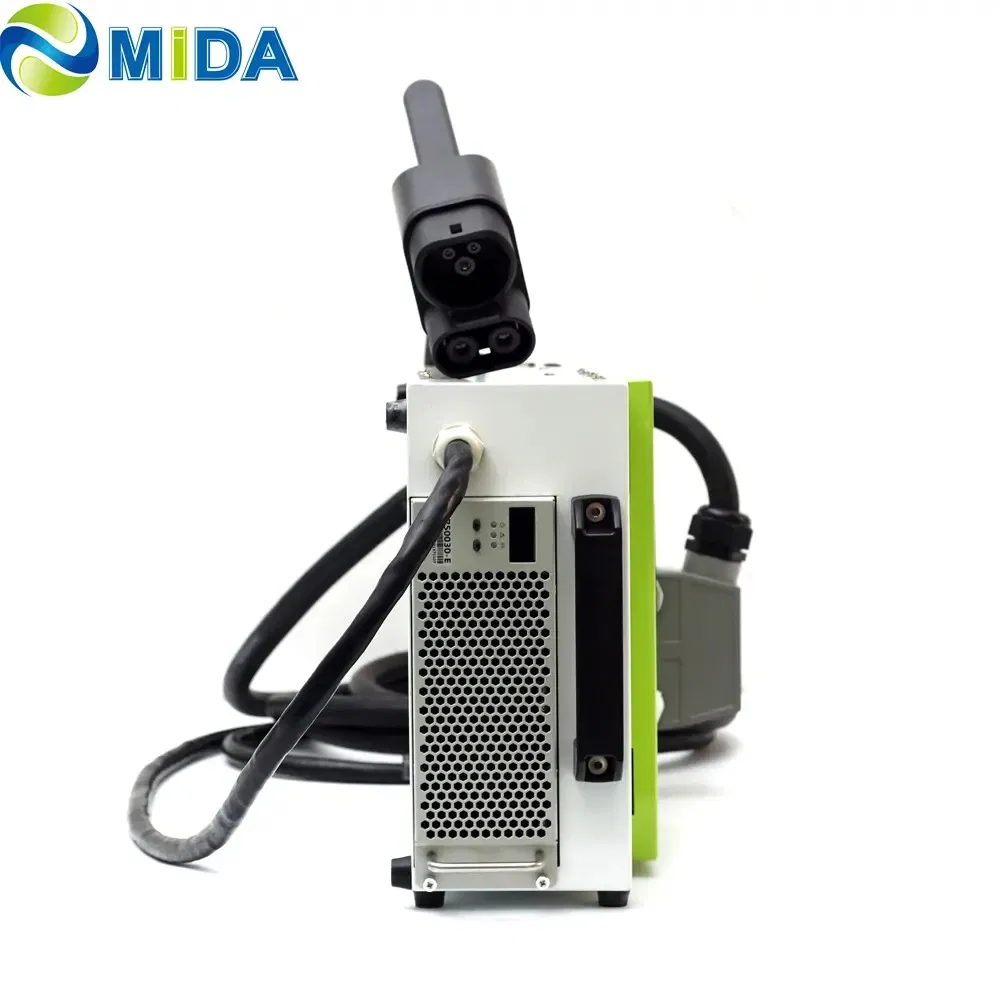

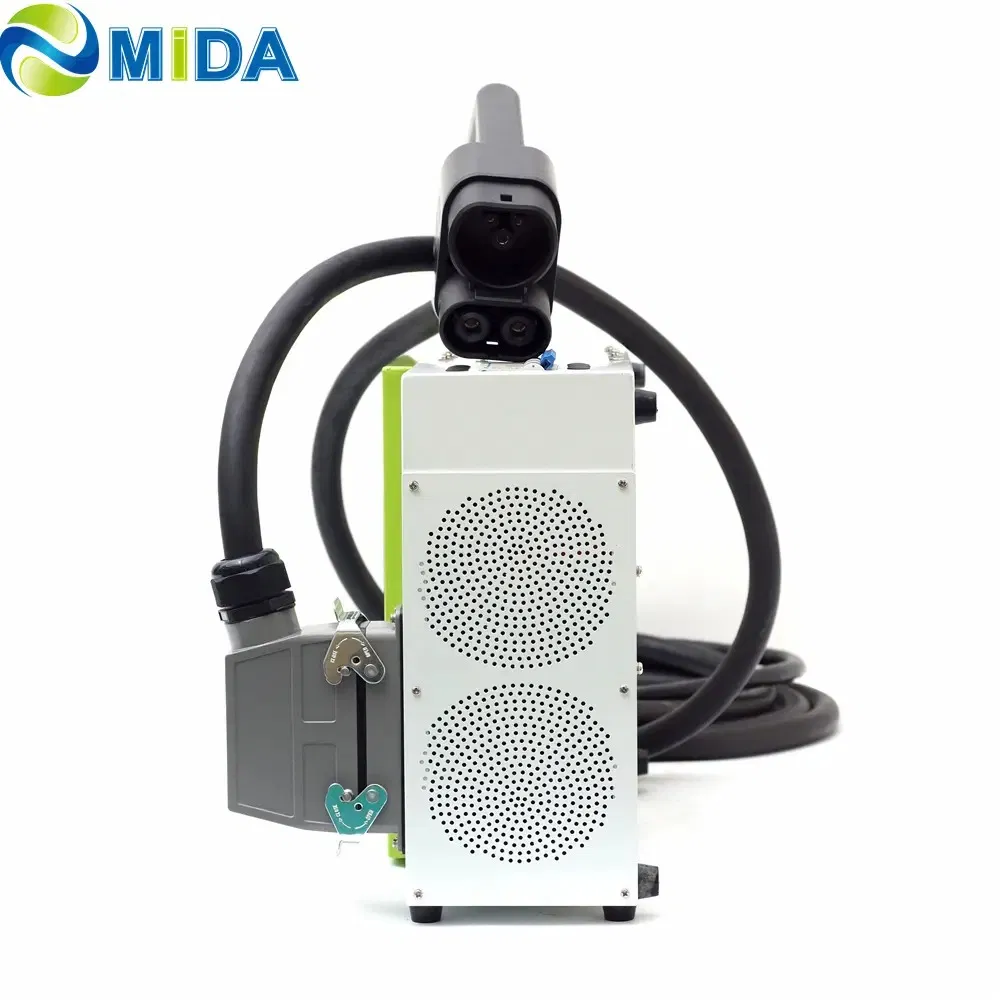

15kw CCS2 Portable EV Charger DC CCS2 Fast Charger

1 / 4

15kw CCS2 Portable EV Charger DC CCS2 Fast Charger

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Mobile

Send Inquiry

Product Description

🔹 Overview & Basic Info

Model NO.	MIDA-PD-15KW
Charging Interfaces	One Pile with One Charge
Start Mode	Credit Card Payment, Mobile Remote Operation, RFID Authentication
Input Rating	400 VAC ± 15%
Efficiency	95%
Max. Output Current	37.5A@500V
Touch Panel	4.3' TFT-LCD Touch Display
Protection Degree	IP54
Operating Temp	-20°C ~ +50°C
Certification	CE, RoHS

🚀 15KW CCS2 Portable DC Fast Charger

⚙️ Dual Protocol Support

Supporting CCS and CHAdeMO simply by replacing the cable. Flexible for various EV models.

📱 Smart Control

Settings can be adjusted freely via the 4.3-inch touch display. USB port included for firmware updates.

🔋 Portable Design

Compact size makes it perfect for road trips in rural areas or industrial sites where power is accessible.

📊 Technical Specification

AC Input	Input Rating: 380Vac± 15%
	AC Input Connection: 3P+N+PE (Wye connection)
	Max. Input Current: 70A
	Efficiency: 95%
DC Output	Output Voltage: 50~500Vdc (CHAdeMo), 150~750Vdc (CCS)
	Max. Output Power: 15kW
	Max. Output Current: 37.5A@500V
User Interface	TFT-LCD: 4.3' touch display
	Push Buttons: Emergency Stop
	Interface: USB, RJ45
Packing	Dimension: 485399165mm
Packing	Weight: 18 KG

🛠️ Our Services

Warranty: 12 months comprehensive warranty.
Pre-sales Support: Professional advice on installation and configuration.
Production Tracking: Real-time progress updates during manufacturing.
Post-sales Service: Free instructions for troubleshooting and installation.
Customization: Support for customized design, samples, and packaging.

🏢 Professional Supplier Profile

A professional supplier of electric vehicle components, including all kinds of EV plugs and sockets, EV cables, EV connectors, and EV charging stations. All products come with CE, PSE, TUV and UL certification. With a strong reputation in European and American markets, the focus remains on being an industry leader and innovator in the new energy automotive sector.

❓ Frequently Asked Questions

What is the maximum charging power of this portable unit? The charger provides a maximum DC output power of 15kW, significantly faster than standard AC portable chargers.

Can this charger support both CCS2 and CHAdeMO? Yes, it is designed to support both protocols by simply replacing the charging cable.

Is the charger suitable for outdoor use? Yes, it features an IP54 protection rating, making it resistant to dust and water splashes from any direction.

What are the electrical input requirements? It requires a 3-phase AC input (380Vac ± 15%) with a 3P+N+PE connection.

Does the device come with a warranty? Yes, we provide a 12-month warranty and full post-sales technical support for installation and troubleshooting.

How can I update the charger's software? The charger is equipped with a USB port specifically for firmware updates to ensure compatibility with new EV models.
