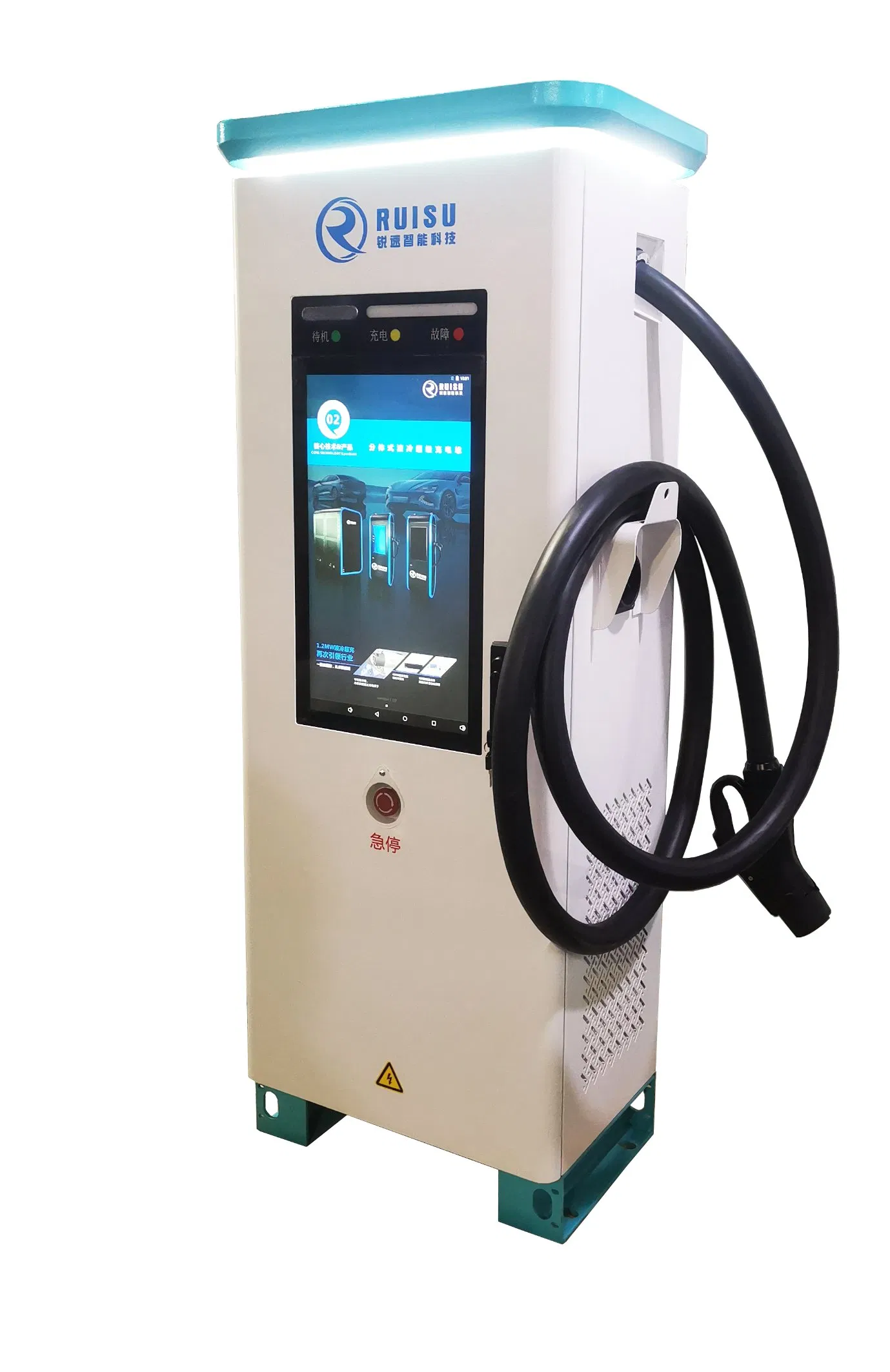

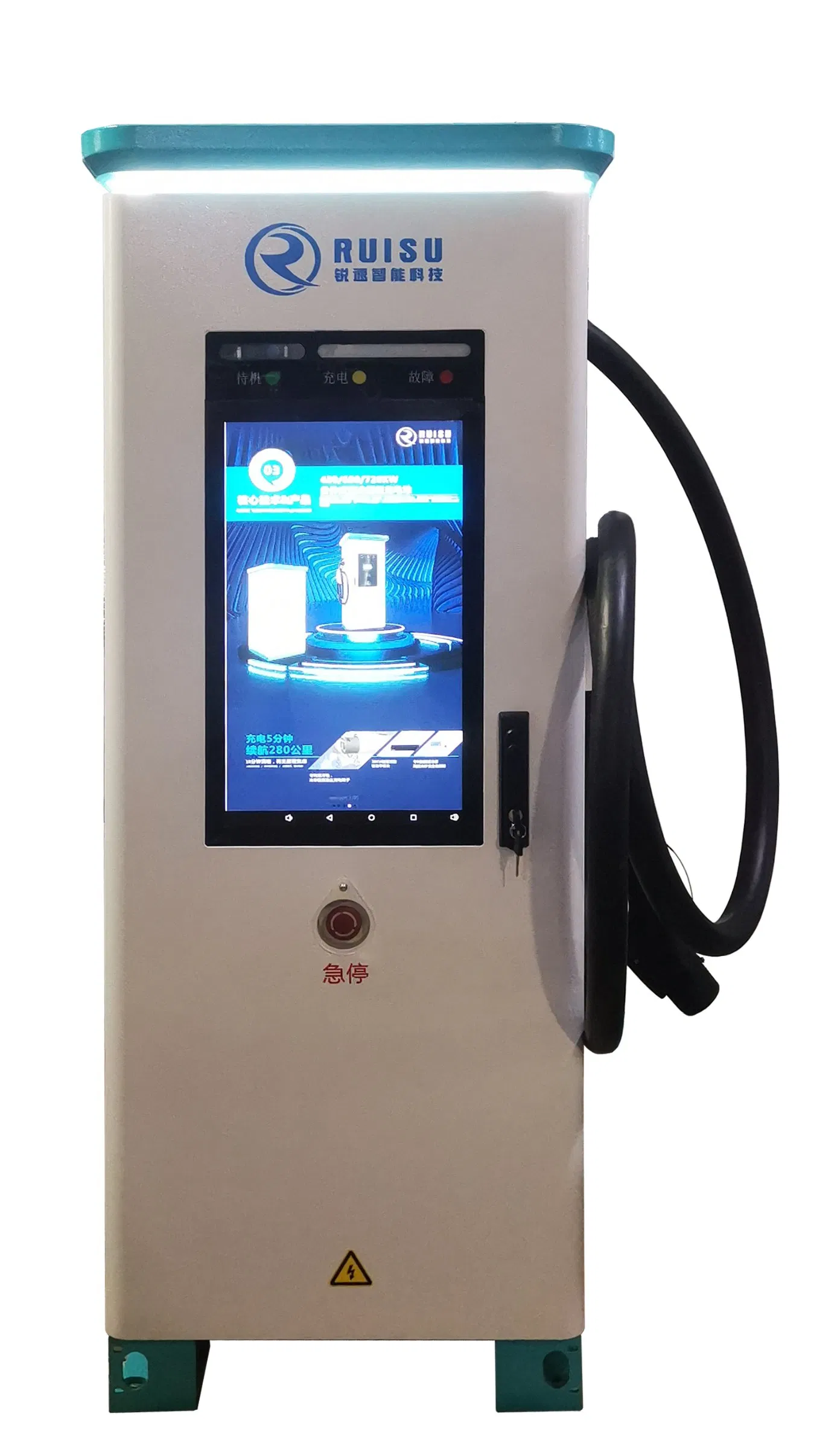

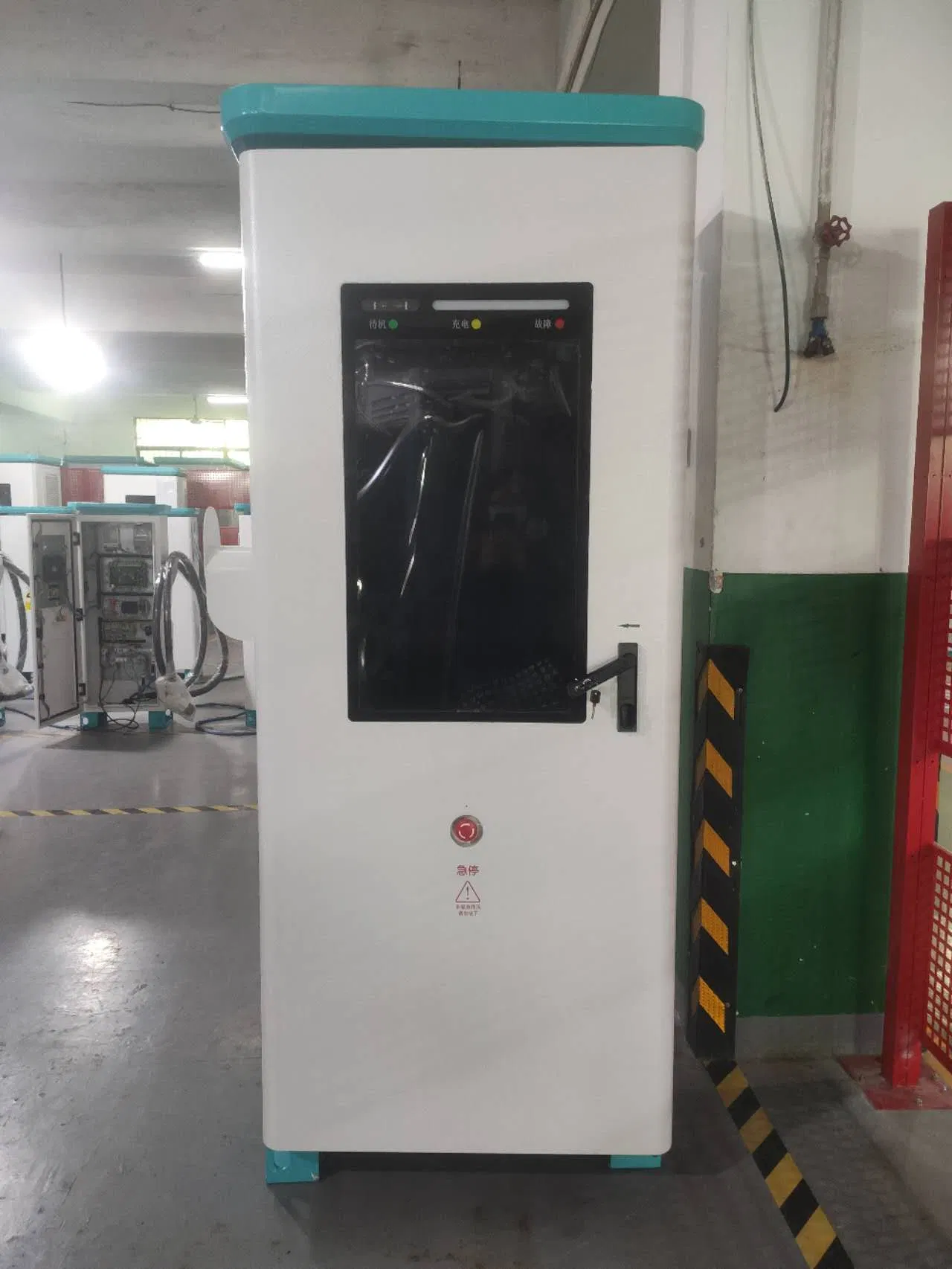

360kw All-in-One Fast DC Charger EU/Us Charging with 27 Inch Interactive Screen

1 / 5

360kw All-in-One Fast DC Charger EU/Us Charging with 27 Inch Interactive Screen

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

RSDC1000-360KW

Max Output Current

250A

Circuit

Intelligent Protected Circuit

Style

All in One

Cooling Type

Air Cooling

After-sales Service

Yes

Type

Fast EV Charging Station

Certification

CE, ISO, TUV, RoHS

Warranty

12 Months

Transport Package

Wooden Case

Specification

1063*932*1743

Origin

China

⚡ Product Description

360KW Fast DC Charger EU/US Charging Standard CCS1/CCS2 for Electrical Light-Duty Truck and Engineering Fleet With 27 inch Big Monitor

Technical Parameters
Product Model	RSDC1000-240KW	RSDC1000-300KW	RSDC1000-360KW
Power	240KW	300KW	360KW
Dimensions (WxDxH)	8309201867mm	8308241966mm	8308241966mm
Display Screen	27' color touch screen
AC Input Voltage	380V±15%, 3-phase + N + PE
Current harmonics	≤5%
Efficiency	≥96% (full load)
DC Output Range	200-1000Vdc
DC Output Current	0~250A (single gun)
Dissipation Mode	Air cooling

Adopt intelligent liquid cooling technology and dual-circulation cooling circuit, allowing the coolant to directly reach the charger terminal and making the charging speed not decreased even the temperature is lower than 55 °C.

The coolant in the liquid cooling system is an organically synthesized liquid that does not freeze at minus 45°C; the cooling source module is equipped with monitoring and alarm devices for working pressure, flow and temperature.

Satisfy the needs of high-power and fast charging, realize 100% SOC of the vehicle within 10 minutes, solving the pain point of long charging time.

Meet requirements of all electric vehicle models with different powers and dynamically match power required by any connected terminal.

Equip intelligent charging module with high power, outstanding efficiency, and low harmonics, applicable to high-power charging.

Dynamically allocate charging power according to BMS demand, increasing equipment utilization and achieving integrated management.

Integrate power conversion, dynamic distribution, station-level monitoring, orderly charging management, and cooling control.

Adopt split structure; one main cabinet can be connected to multiple charging terminals to meet different operational needs.

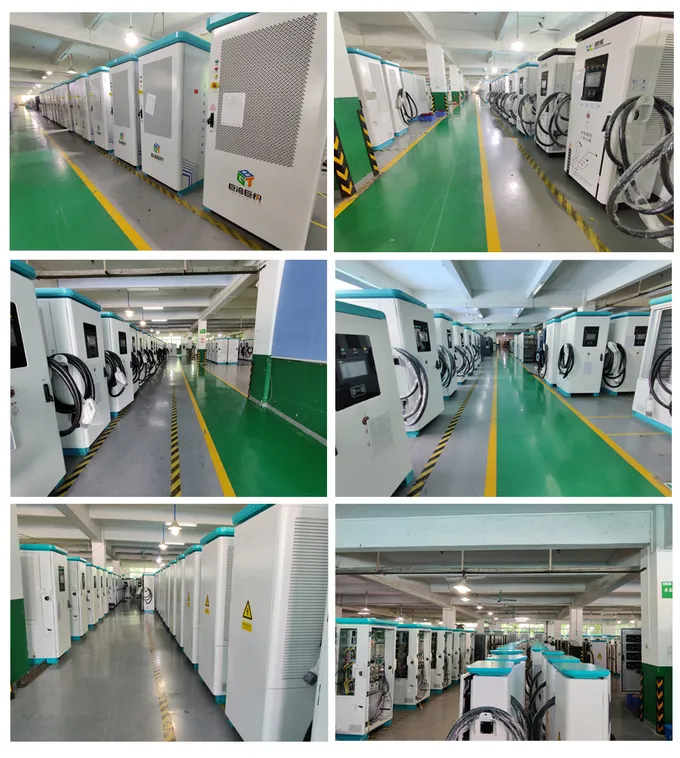

🖼️ Product Showcase

Frequently Asked Questions

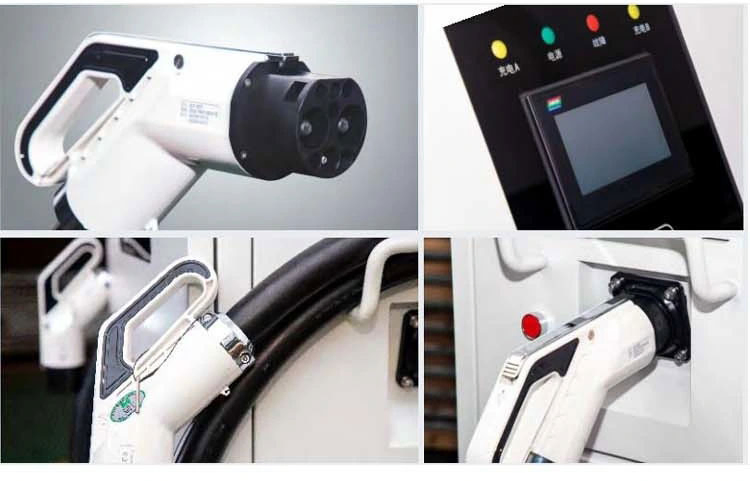

Q1: What charging standards does this station support? A: This station supports both EU and US standards, specifically CCS1 and CCS2 connectors, making it compatible with a wide range of electric vehicles.

Q2: How fast can it charge an electric vehicle? A: With high-power output capability, it can achieve 100% State of Charge (SOC) for compatible vehicles within approximately 10 minutes.

Q3: Can this charger operate in extremely cold environments? A: Yes, the liquid cooling system uses a synthesized liquid that does not freeze even at temperatures as low as minus 45°C.

Q4: What is the benefit of the 27-inch monitor? A: The large color touch screen provides an intuitive user interface for monitoring charging progress, adjusting settings, and interactive operation.

Q5: Is the power distribution intelligent? A: Yes, the system dynamically allocates charging power based on the demand from the vehicle's Battery Management System (BMS).

Q6: What certifications does the product hold? A: The product is fully certified with CE, ISO, TUV, and RoHS standards, ensuring safety and quality.
