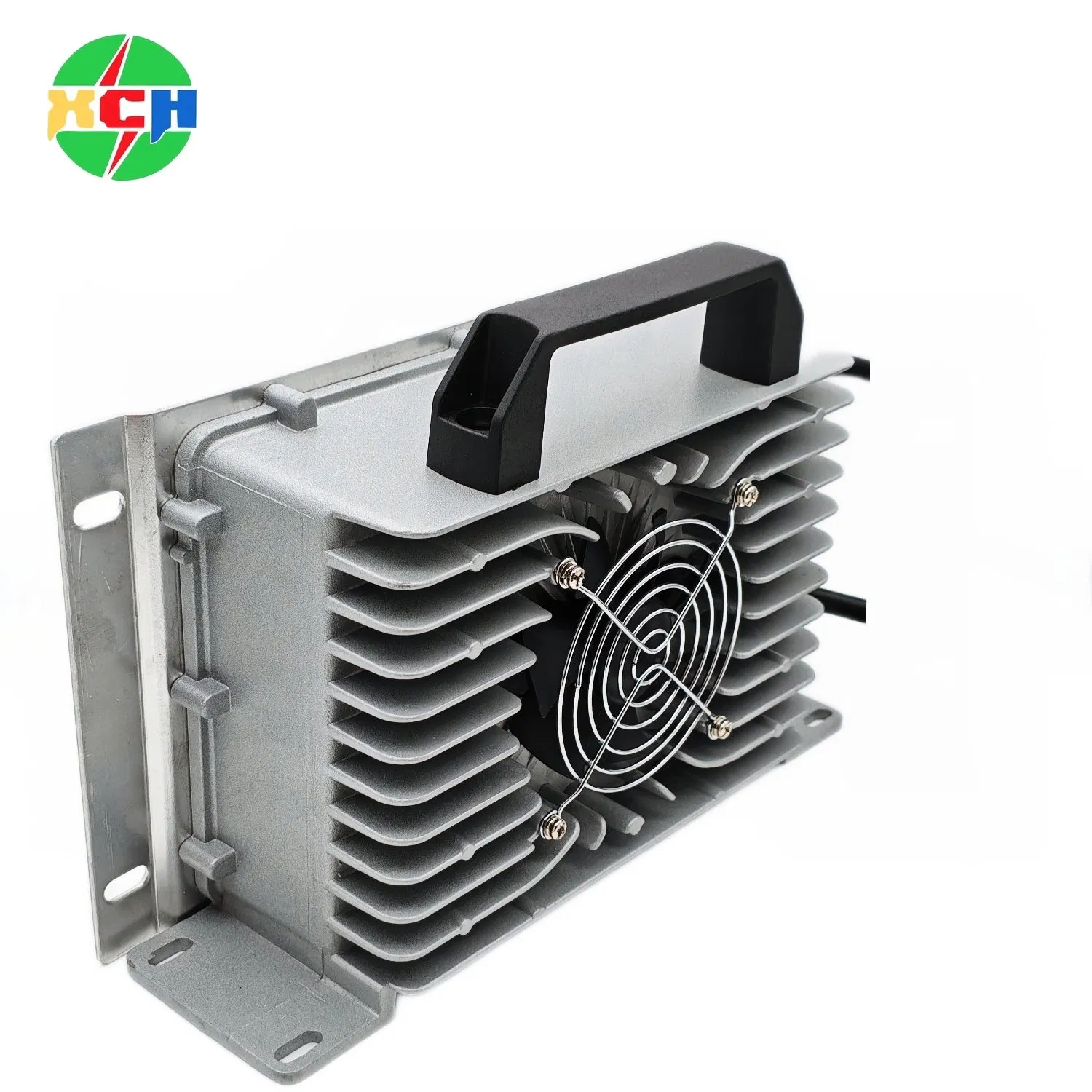

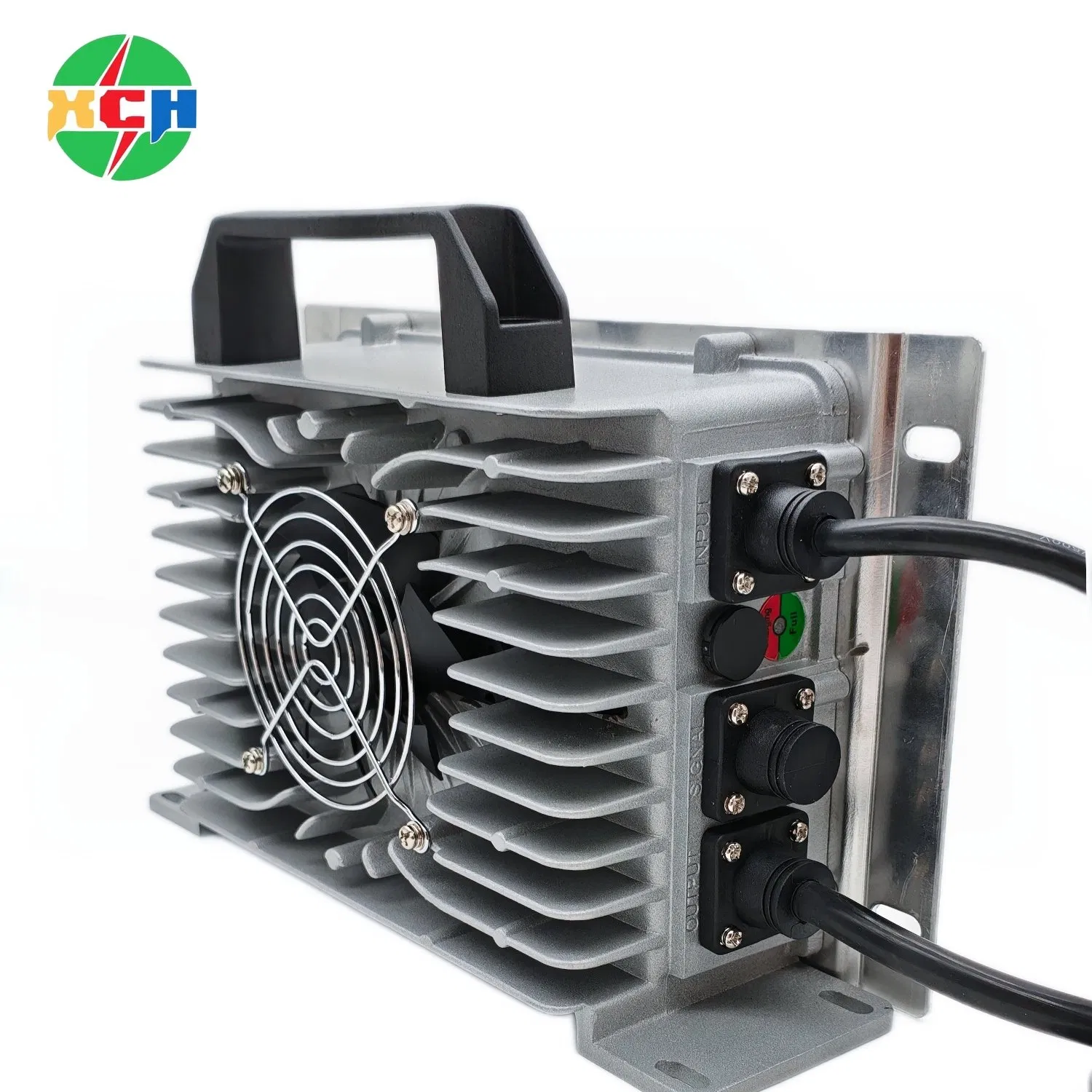

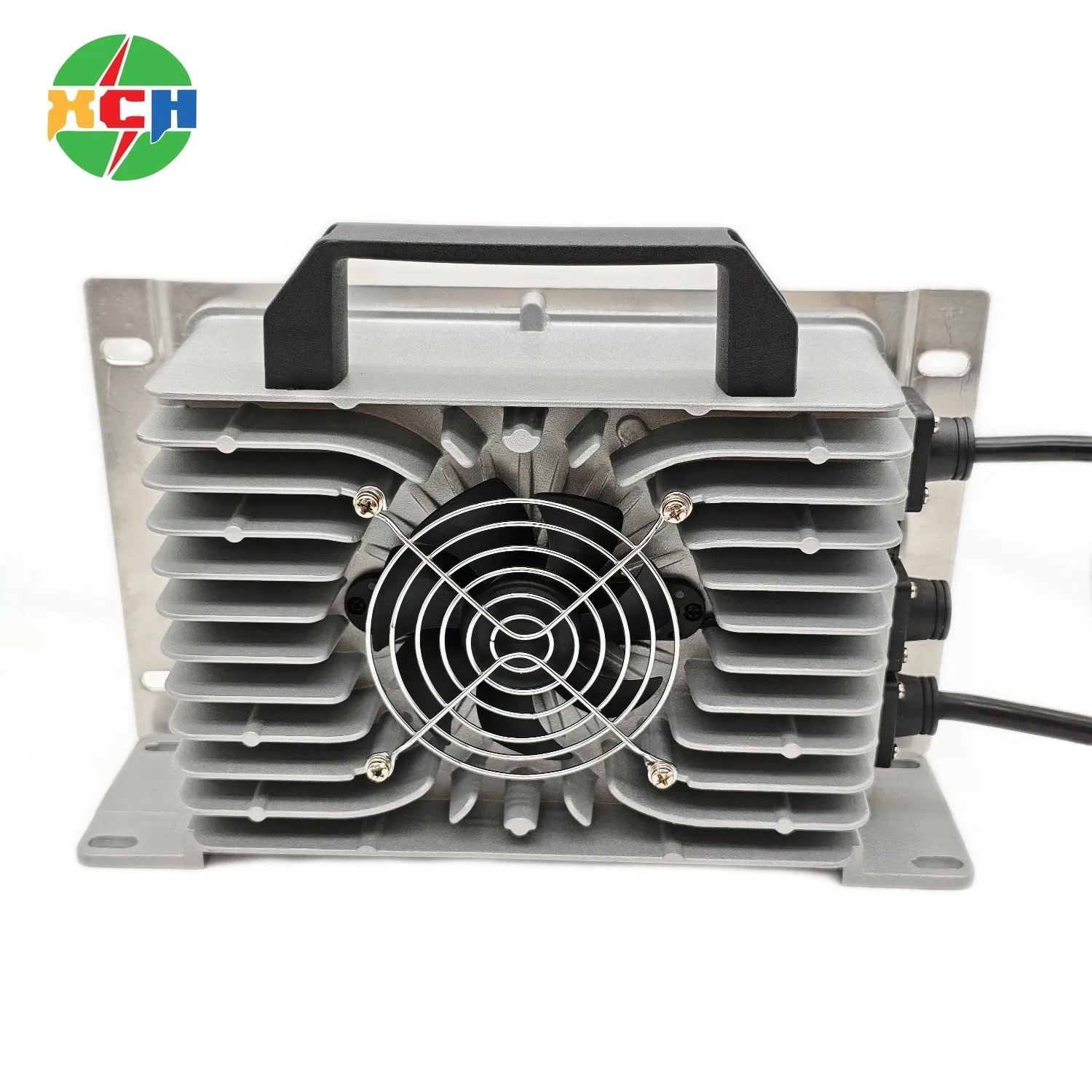

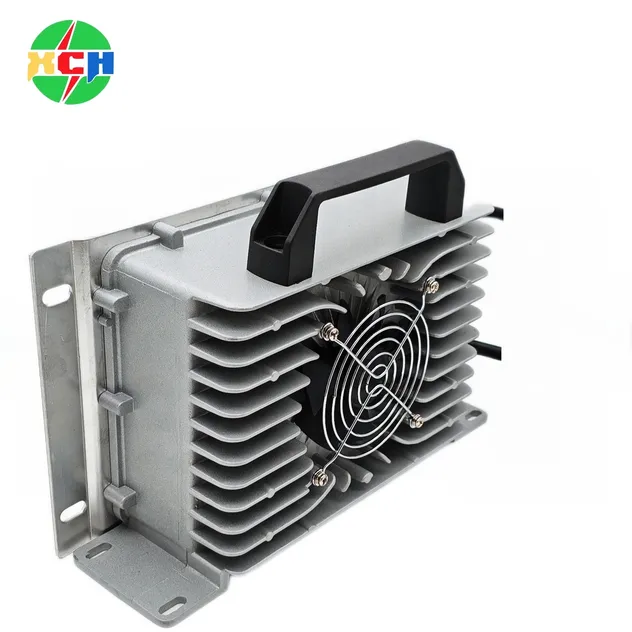

ON-BOARD CHARGER (OBC)
This onboard charger is a vital component within electric vehicles, responsible for converting alternating current (AC) from external sources like home charging stations into the direct current (DC) required by the high-voltage traction battery. It acts as the critical interface during AC charging, dictating the speed and efficiency of the process. Its integrated design ensures safe, reliable power conversion, enabling convenient charging from standard AC infrastructure.
Advanced Graphene
Charge faster and more efficiently, reducing heat and energy loss for superior performance.
Enhanced Durability
Extend your charger's lifespan, designed to withstand rigorous daily use reliably.
Versatile Compatibility
Seamless use with both lead-acid and lithium-powered electric vehicles (E-Bike, Scooter, etc.).

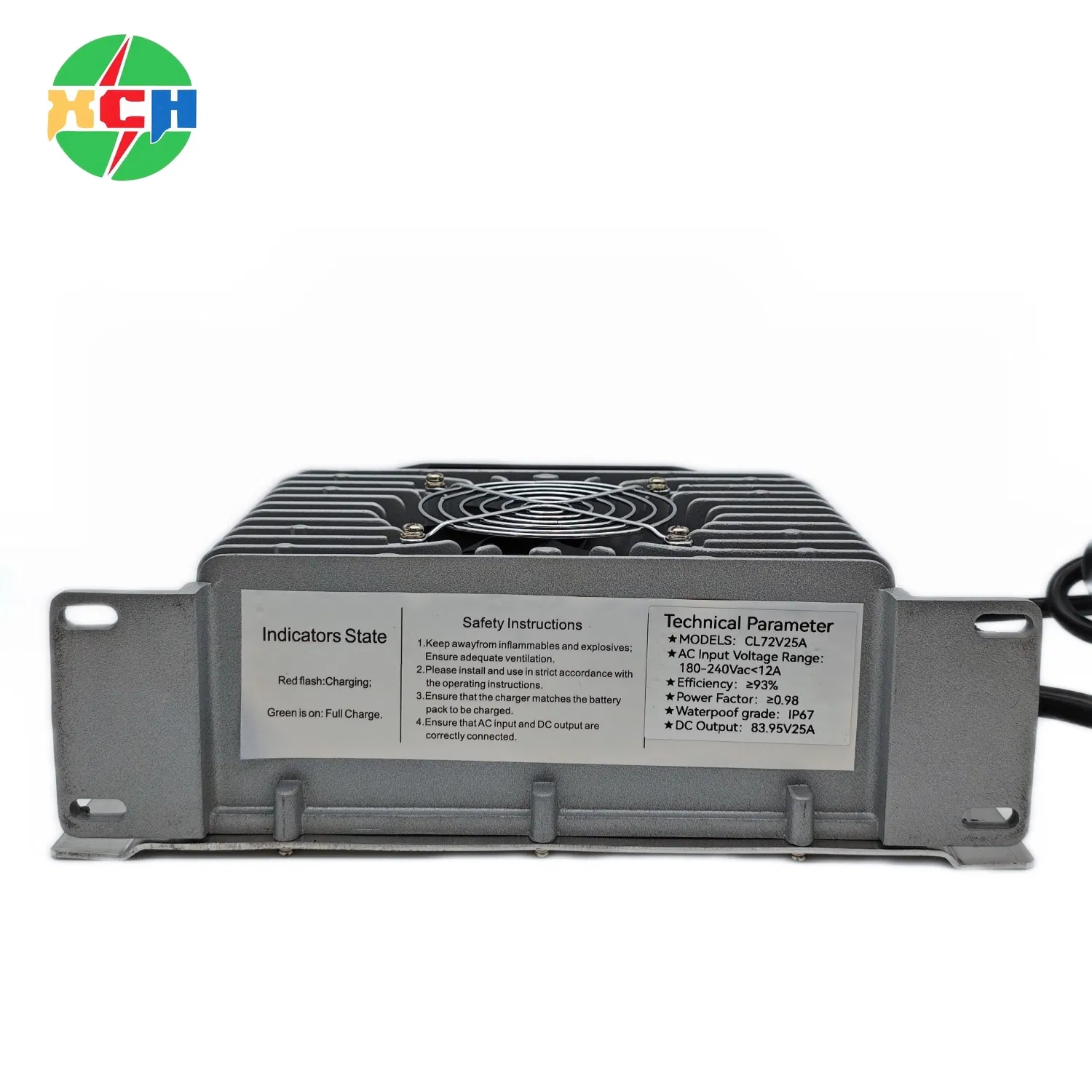

| Specification Items | Standard Parameters |
|---|---|
| Model No. | 72V25A |
| Application | Ebike, Emotorcycle, Escooter, Erickshaw |
| Material | ABS+PC |
| Input Voltage | 110V, 220V, 110V-220V AC, 50-60Hz |
| Rated Output Voltage | 83.95V±0.5V DC |
| Rated Charging Current | 24.8V-25.0V |
| Weight | 2.5kg |
| Working Efficiency | >87% |
| Short Circuit Protection | Yes |
| Reverse Connect Protection | Yes |
| Temperature Protection | Yes |
| No-Load Power | ≤3W |
| Output Voltage Ripple | ≤500mv P-P |
| Working Temperature | -10ºC to 50ºC |
| Dielectric Strength | 3.75kv, Leakage Current <10mA/min |
