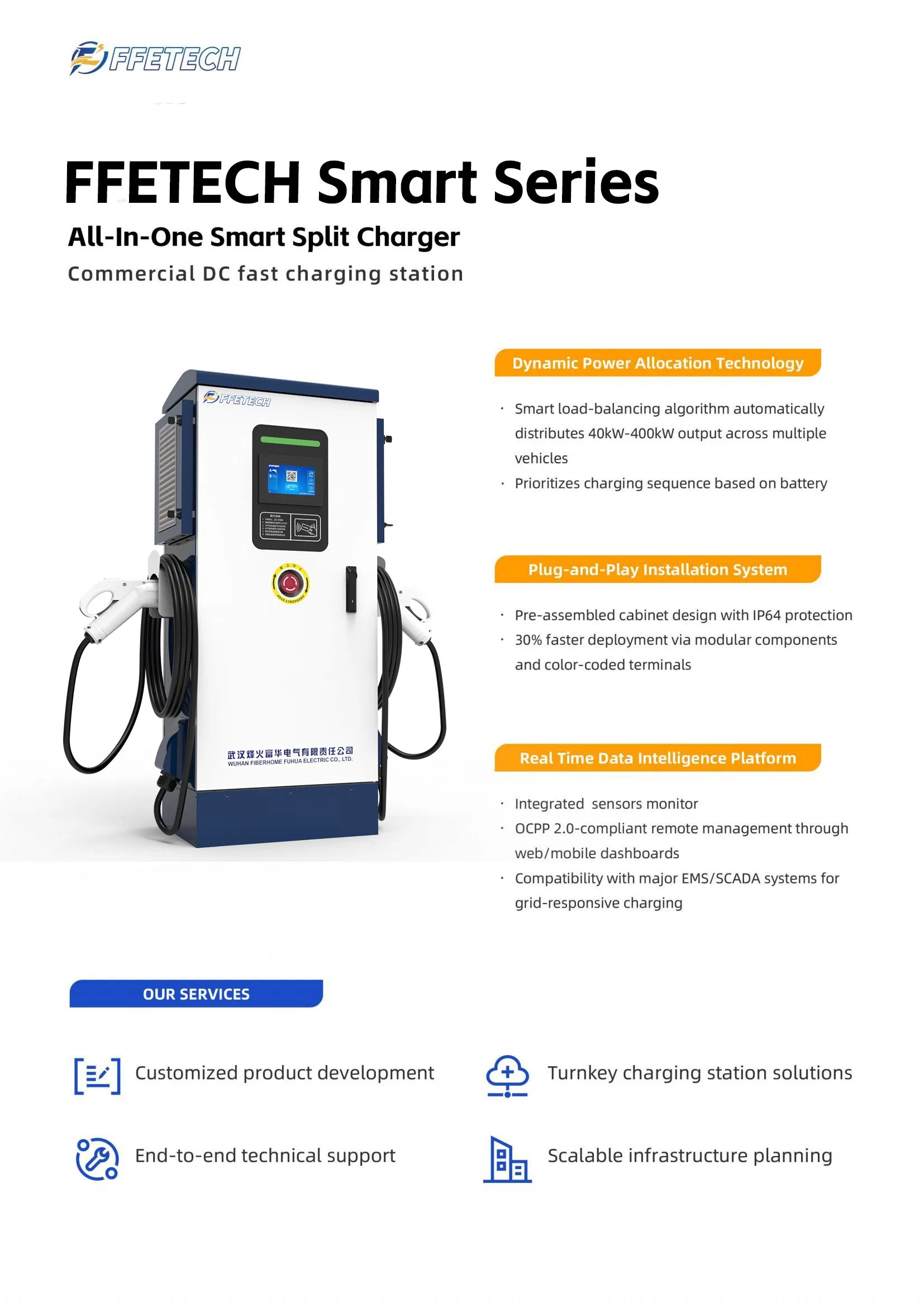

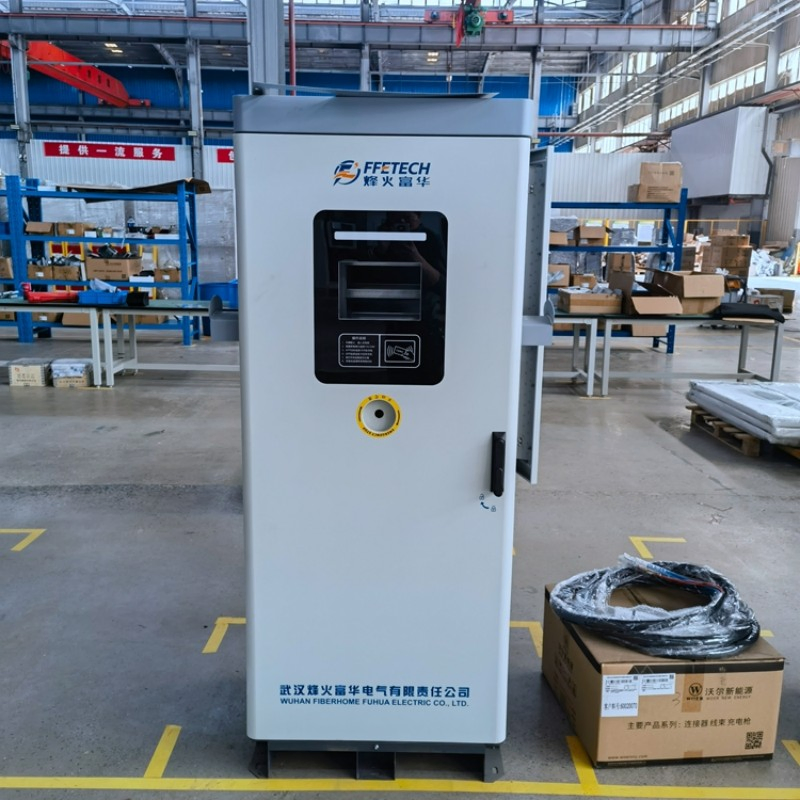

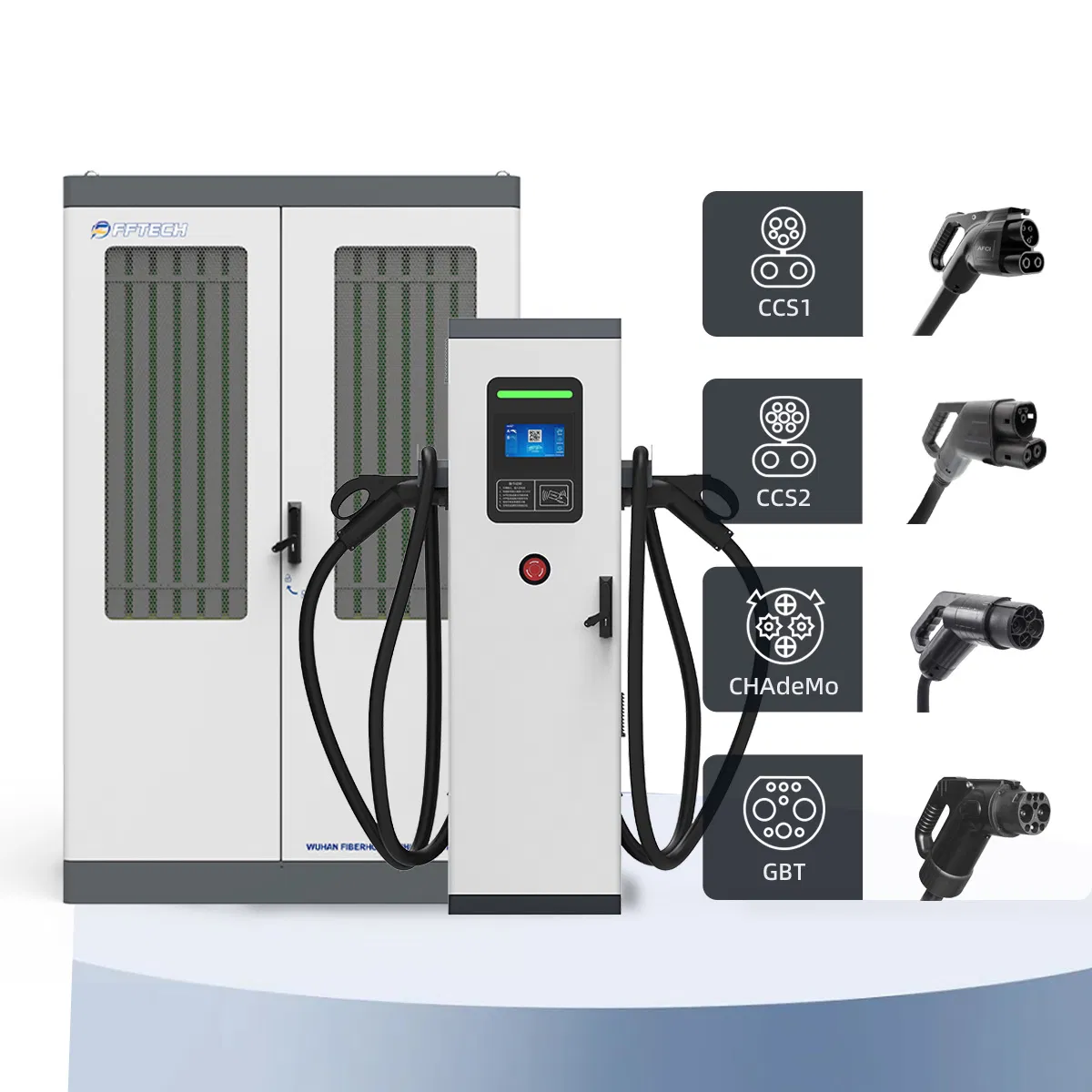

This series adopts a highly integrated all-in-one design, combining the charging module, heat dissipation system, human-machine interaction, and payment function into a single cabinet. Featuring a compact structure and convenient deployment, the shell is crafted from high-strength protective material with superior dustproof, waterproof, and corrosion-resistant performance.
| Category | 40kW | 60kW | 80kW | 120kW | 180kW | 240kW | 320kW | 400kW |
|---|---|---|---|---|---|---|---|---|
| Model No. | FH-ED-40K | FH-ED-60K | FH-ED-80K | FH-ED-120K | FH-ED-180K | FH-ED-240K | FH-ED-320K | FH-ED-400K |
| Input Voltage | 380VAC±15% | |||||||
| Input Current | 65A | 98A | 131A | 196A | 294A | 392A | 523A | 653A |
| Output Voltage | DC150~1000V | |||||||
| Safety Standards | GB/T20234, GB/T18487, IEC 62196, IEC61851 | |||||||

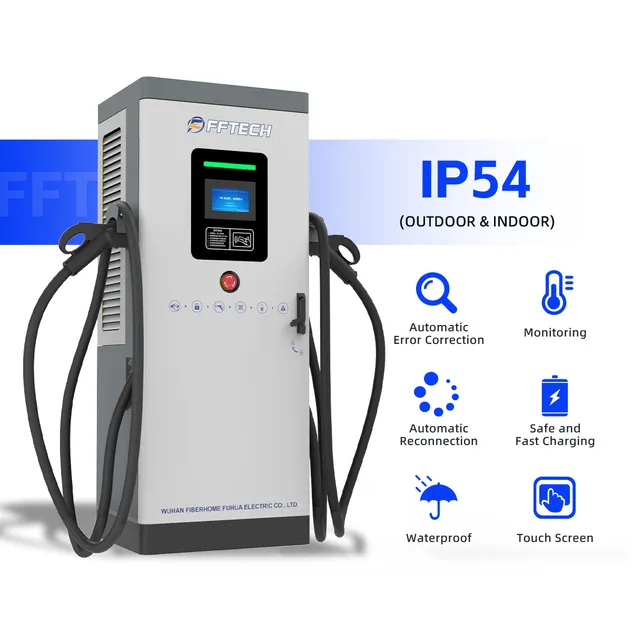

IP54 rating ensuring durability in various environmental conditions.

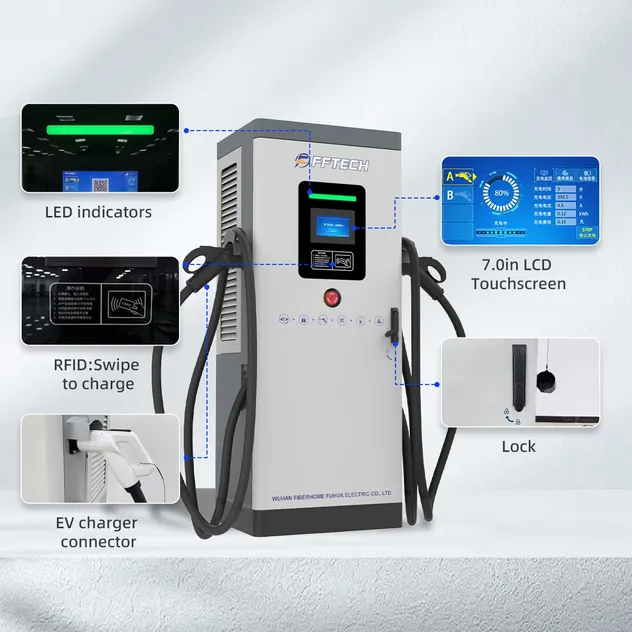

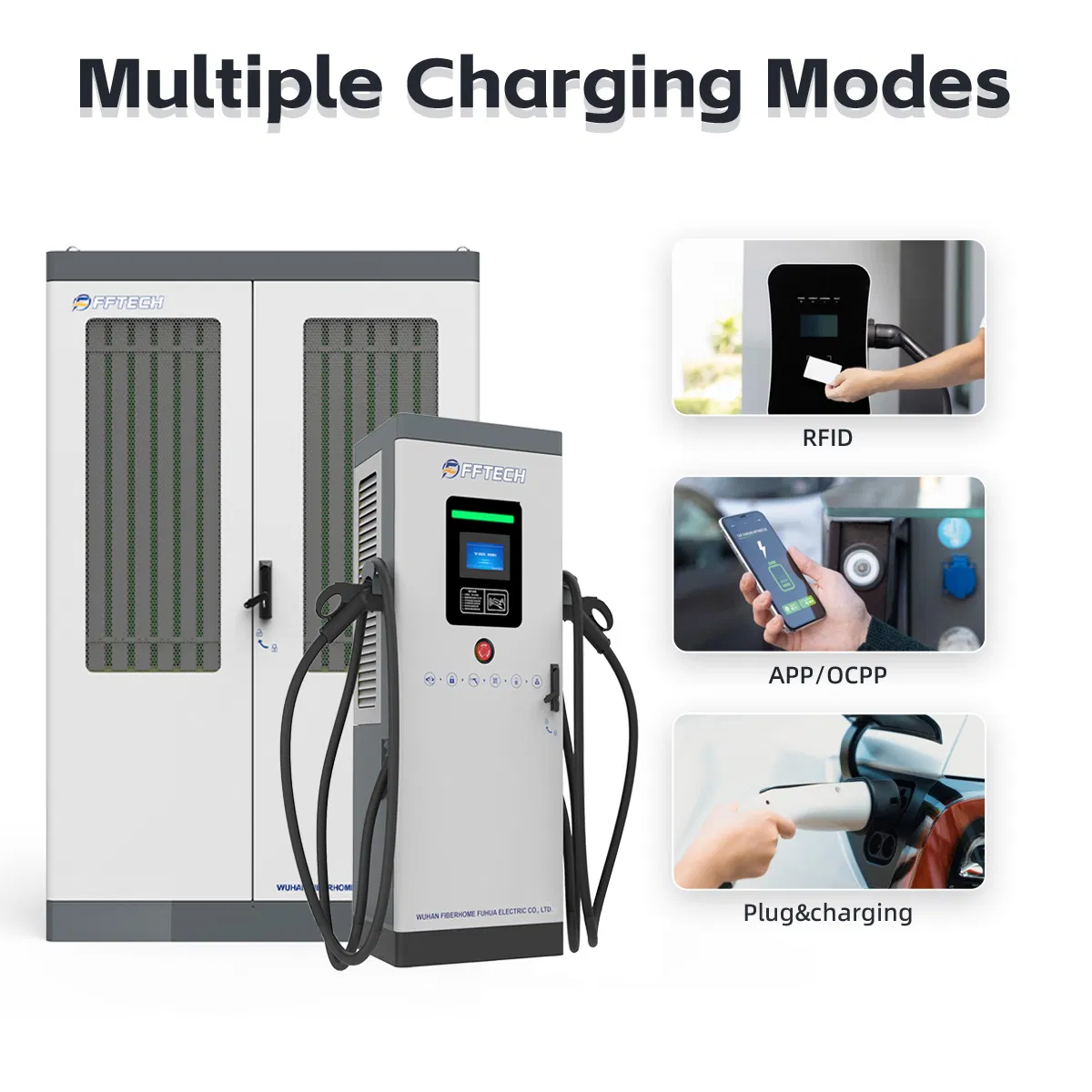

Equipped with a 7-inch LCD screen and multiple start methods including App and RFID.

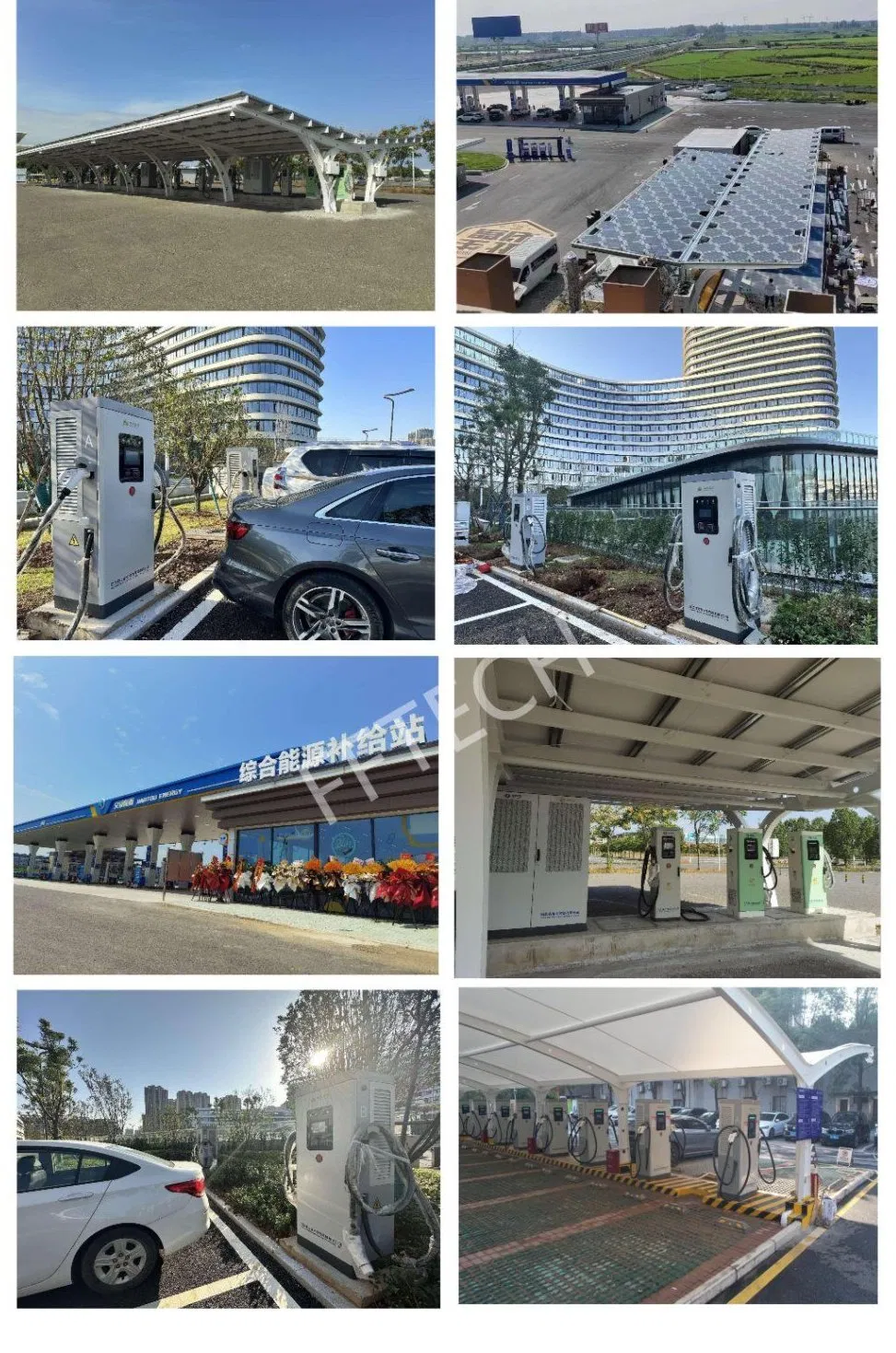

Suitable for commercial centers, public parking, and charging stations.
