Canton Fair Popular Cement Charger for Concrete Batching Plant

1 / 5

Canton Fair Popular Cement Charger for Concrete Batching Plant

Customization:	Available
Warranty:	One Year
Type:	Pneumatic Cement Conveyor

Send Inquiry

Product Description

Technical Specifications

Model NO.

WG5 WG8 Cement Charger

Shotcrete Type

Dry

Machining Process

Brick Production Line

Structure

Rotor Type

Productivity

5-8m3/H Pneumatic Cement Conveyor

Certification

ISO9001: 2000, CE

Condition

New

Material

Carbon Steel

Material Feature

Wear/Heat Resistant

Load Capacity

5m³/8m³

Motor

18.5kw

Operating Pressure

0.19MPa

Powder Remain Ratio

Less Than 0.4%

HS Code

8428200000

Product Overview

Pneumatic cement charger (cement horizontal feeder or cement conveyor) is an uniquely structured pneumatic conveying equipment, which uses fluidized pressure delivery technology. This pneumatic cement conveyor is widely applicable in remote construction sites where bulk cement carrier (truck) is not reachable, whereas bulk cement or bag cement are much available.

Cement Charger for Concrete Batching Plant

⭐

Key Advantages:

ISO & CE certified quality assurance.
High quality with 12 months warranty.
Specifically optimized for concrete batching plants.

Why Choose Our Pneumatic Cement Charger?

Advanced Technology: It is pneumatic powder conveying equipment with advanced structure, adopting fluidized pressure delivery technology and unique fluidized bed design.
Versatile Transport: Applicable to transport cement, grain, coal-ash, lime powder, barite, powder resin and other non-sticky or granular materials with high blow-off efficiency.
High Compatibility: The discharging point is adapted for alternating with bulk cement carriers, and main components are interchangeable with standard equipment in mixing plants.

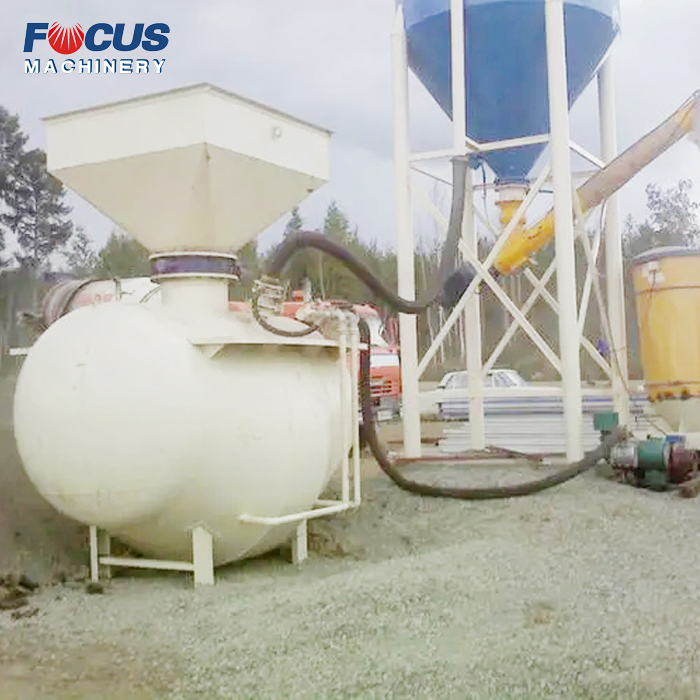

Efficient Design: Large capacity, high utilization, and convenient installation. Its light and compact design is popular for feeding powder materials into cement silos.

Technical Parameters

Model	WG5	WG8
Tank volume (m³)	5	8
Power (kw)	18.5	18.5
Blow-off efficiency (t/min)	>1.2	>1.2
Remain rate (%)	<0.4	<0.4
Operating pressure (mpa)	0.19	0.19
Rated transmission capacity (kg/h)	70	90
Transport distance (vertical) (m)	>50	>50
Weight (kg)	1600	1800
Overall dimension (mm)	260020002500	320023002630
Air Compressor Parameters
Compressor model	WB5.4/2	WB5.4/2
Discharge capacity (m³/min)	5.2	6
Pressure rating (mpa)	0.2	0.2

Product Details

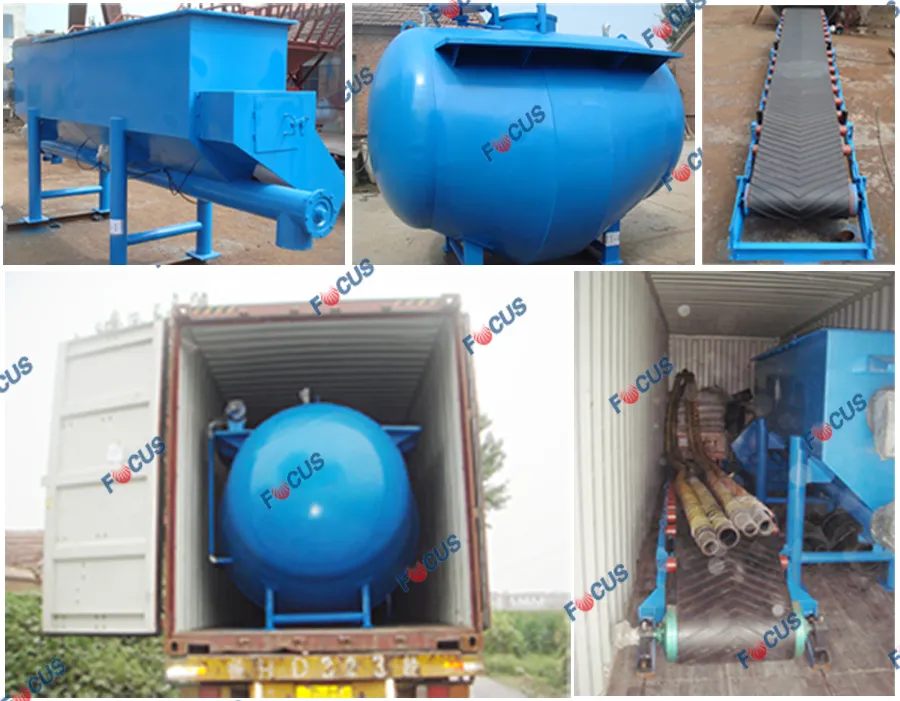

Our Pneumatic Cement Chargers are being delivered and distributed globally every day. We welcome you to explore our advanced solutions for your concrete mixing needs.

Frequently Asked Questions

What materials can the WG series charger handle?

It is designed to transport cement, grain, coal-ash, lime powder, barite, powder resin, and other non-sticky or granular materials.

How efficient is the discharging process?

The equipment features a blow-off efficiency of more than 1.2 tons per minute, ensuring rapid material transfer.

What is the vertical transport capability?

The system can transport materials vertically to a height of more than 50 meters, making it ideal for tall cement silos.

Is there a lot of material left in the tank after discharge?

No, the unique fluidized bed design ensures a very low powder remain ratio of less than 0.4%.

What are the power requirements?

The system operates on a standard industrial power source of 380V, 50Hz, 3 Phase with an 18.5kw motor.

Is the equipment certified for international use?

Yes, the products are ISO9001:2000 and CE certified, meeting international quality and safety standards.
