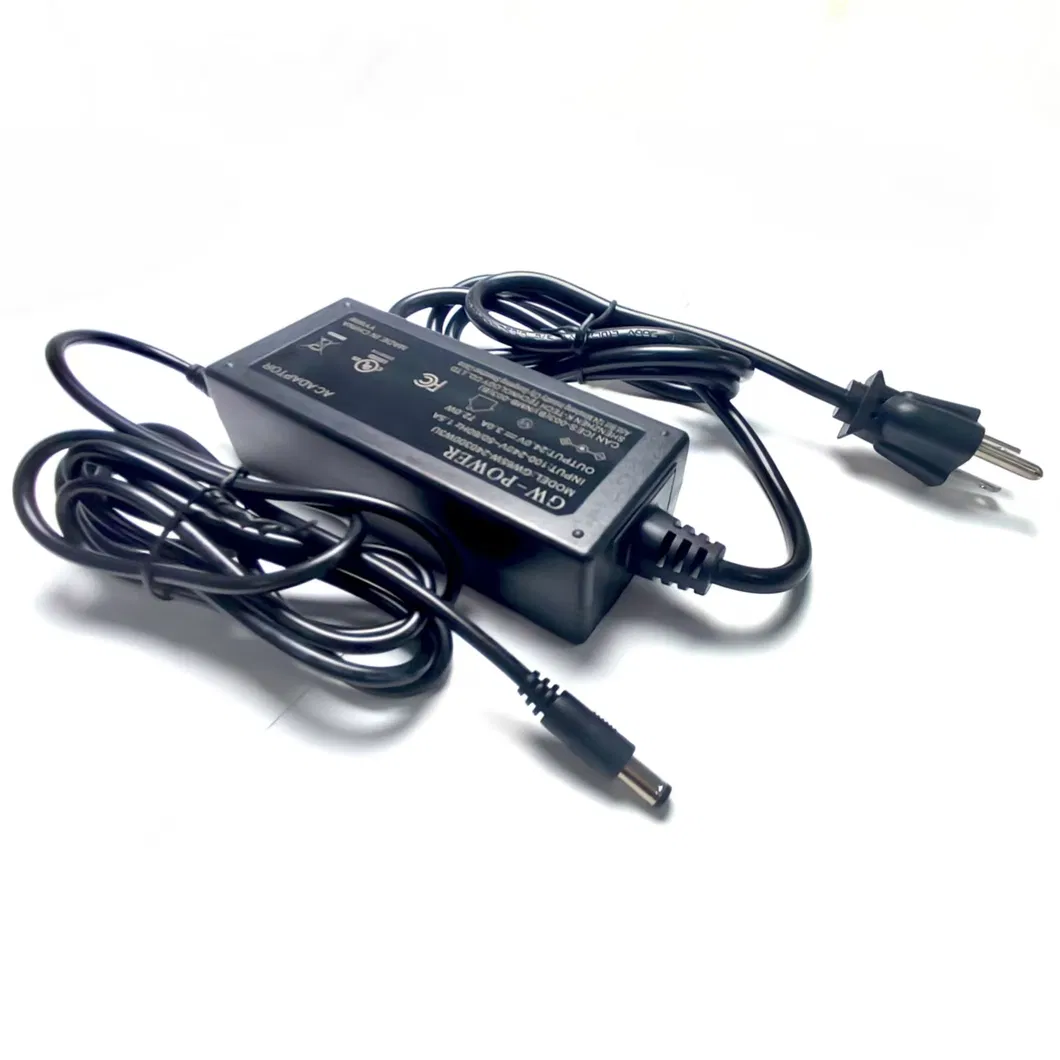

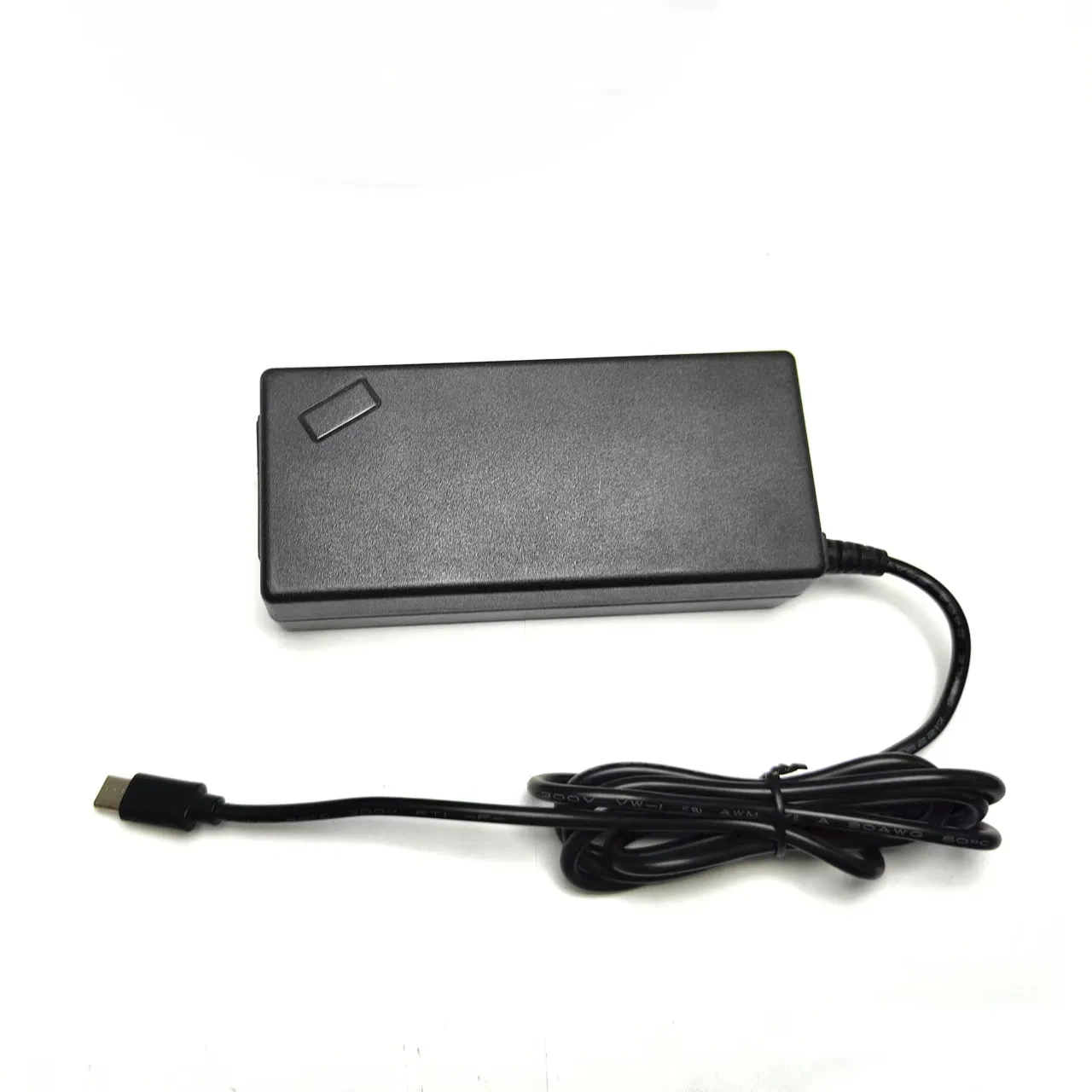

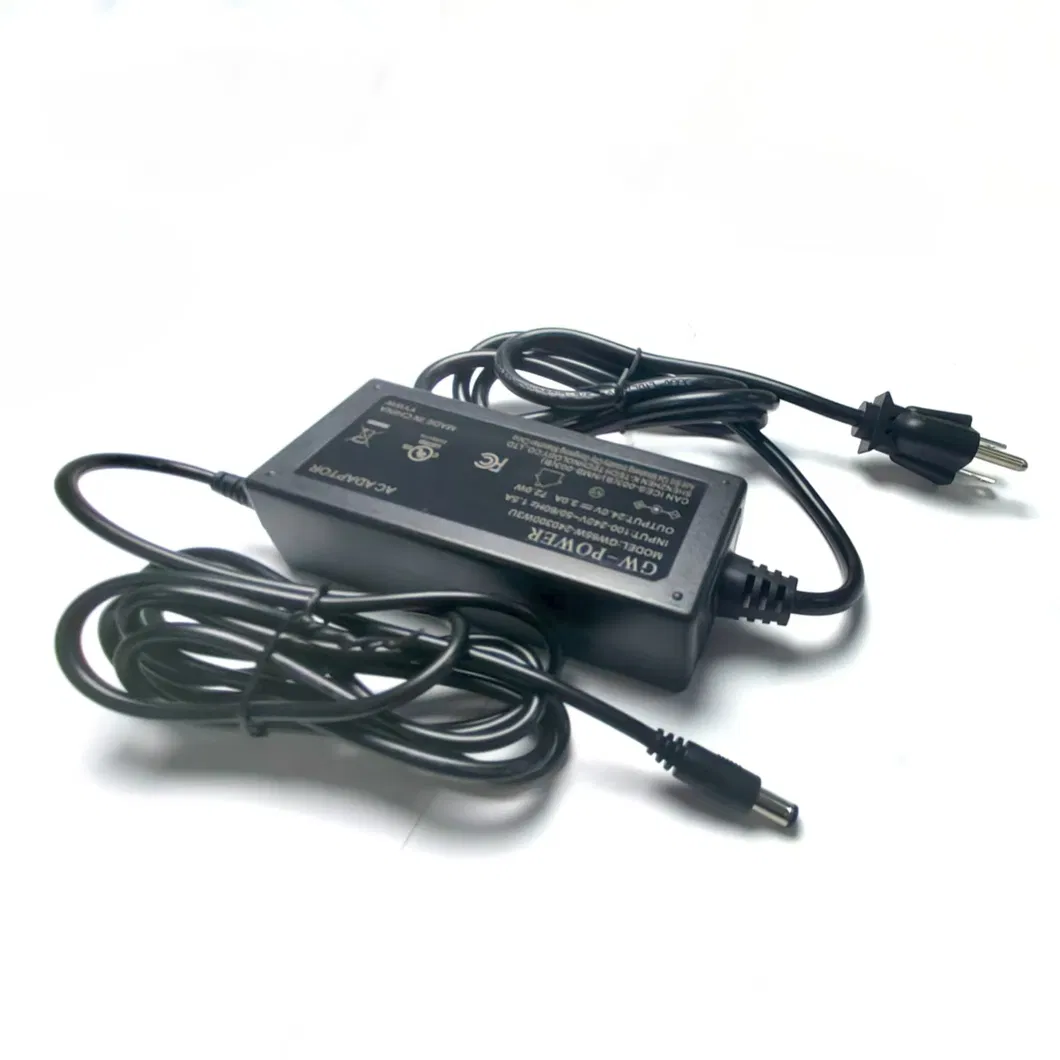

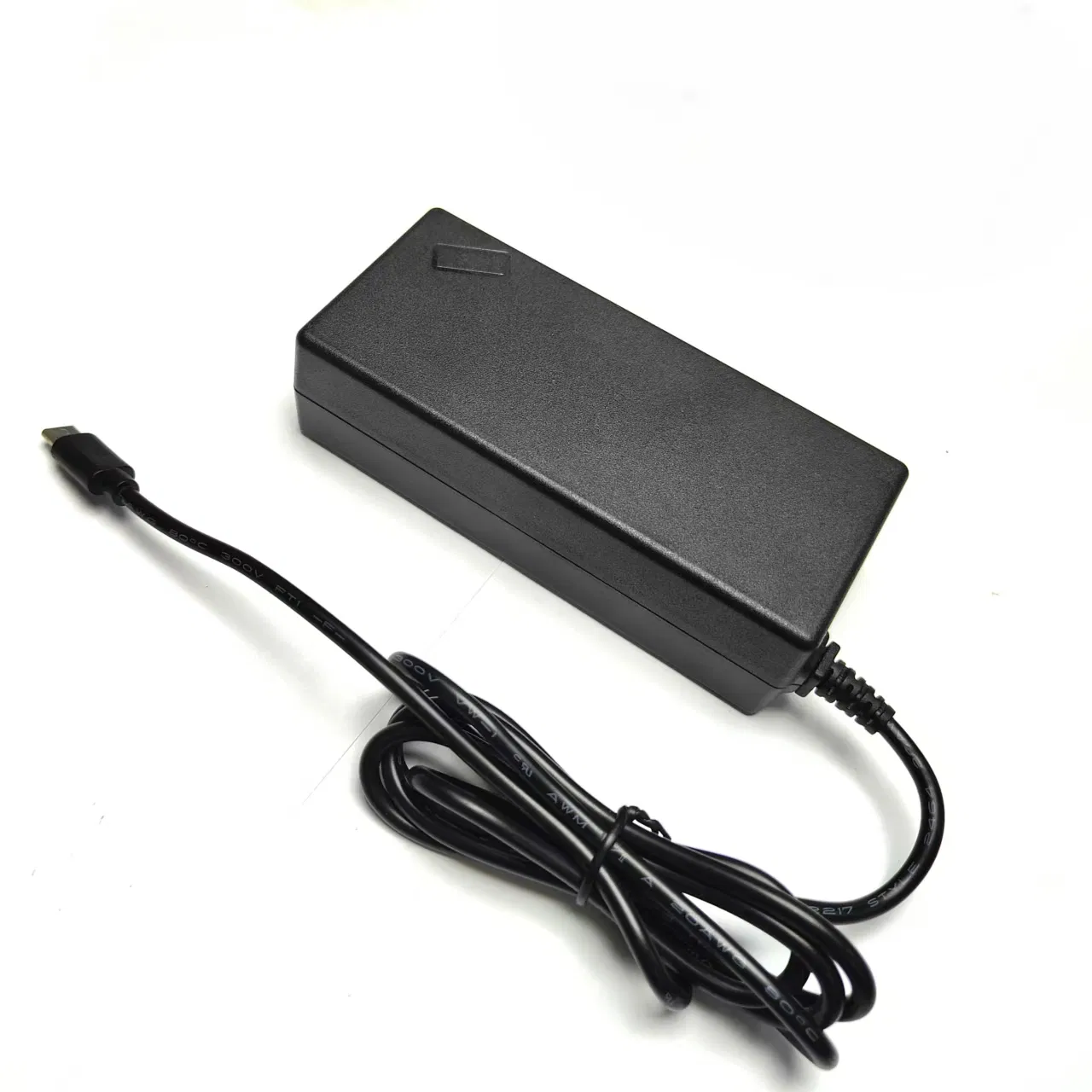

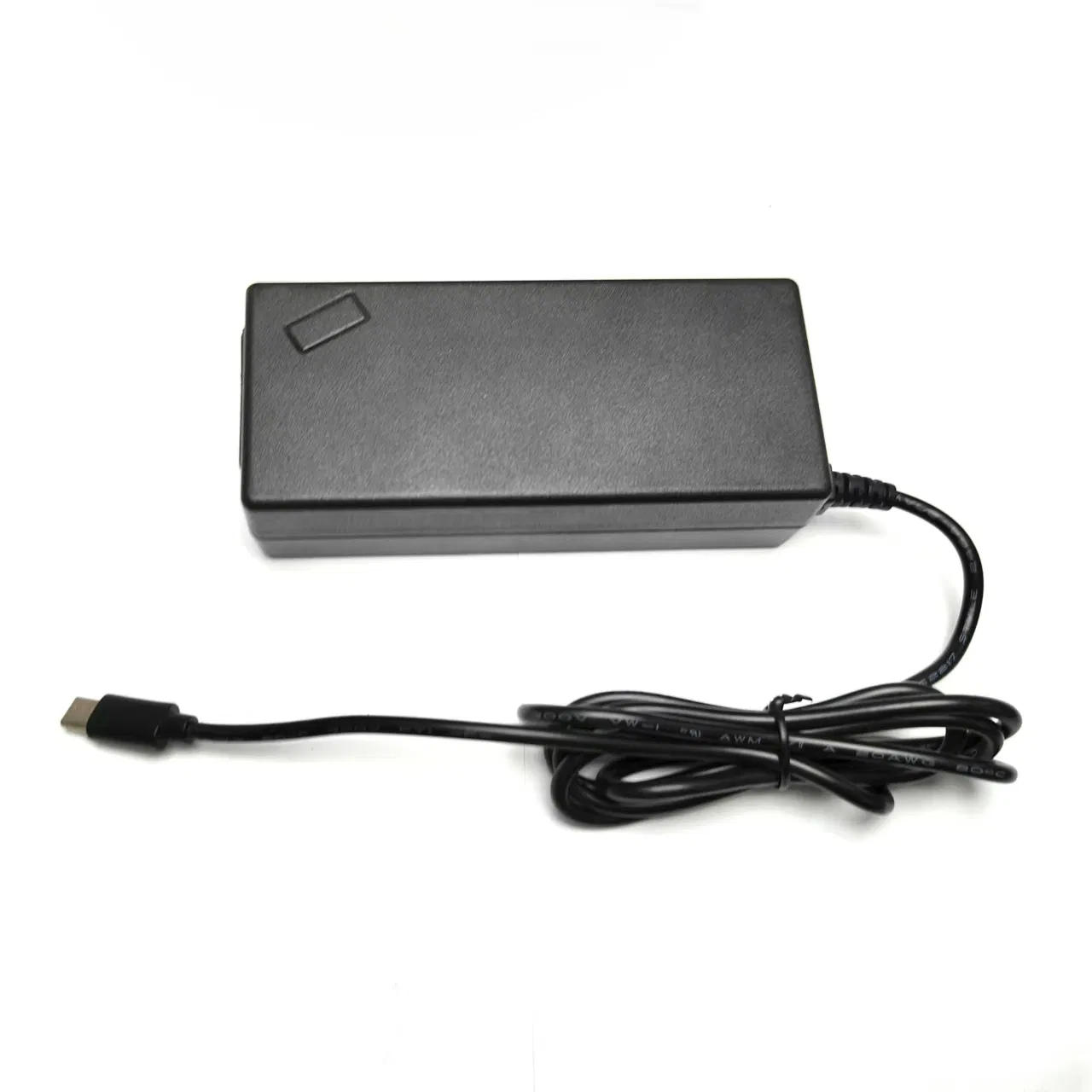

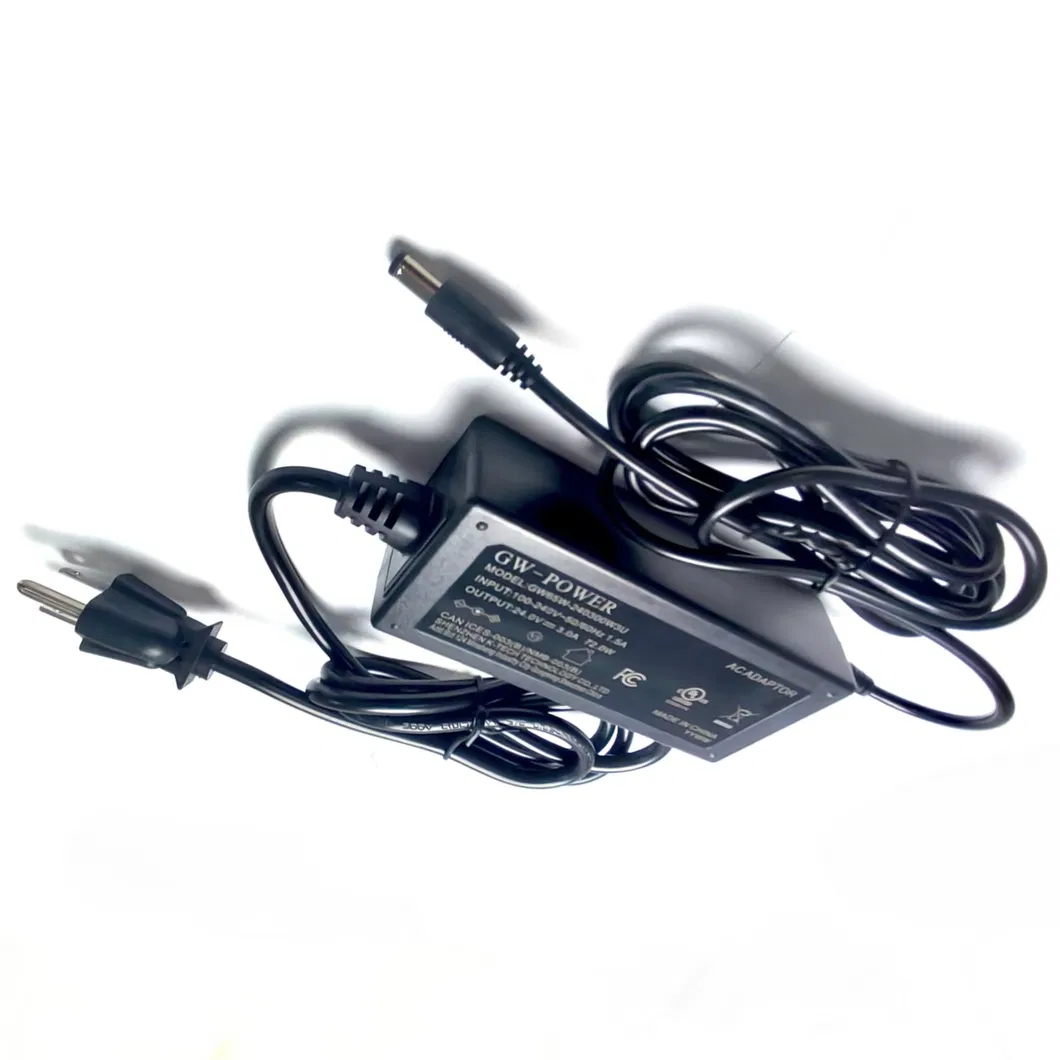

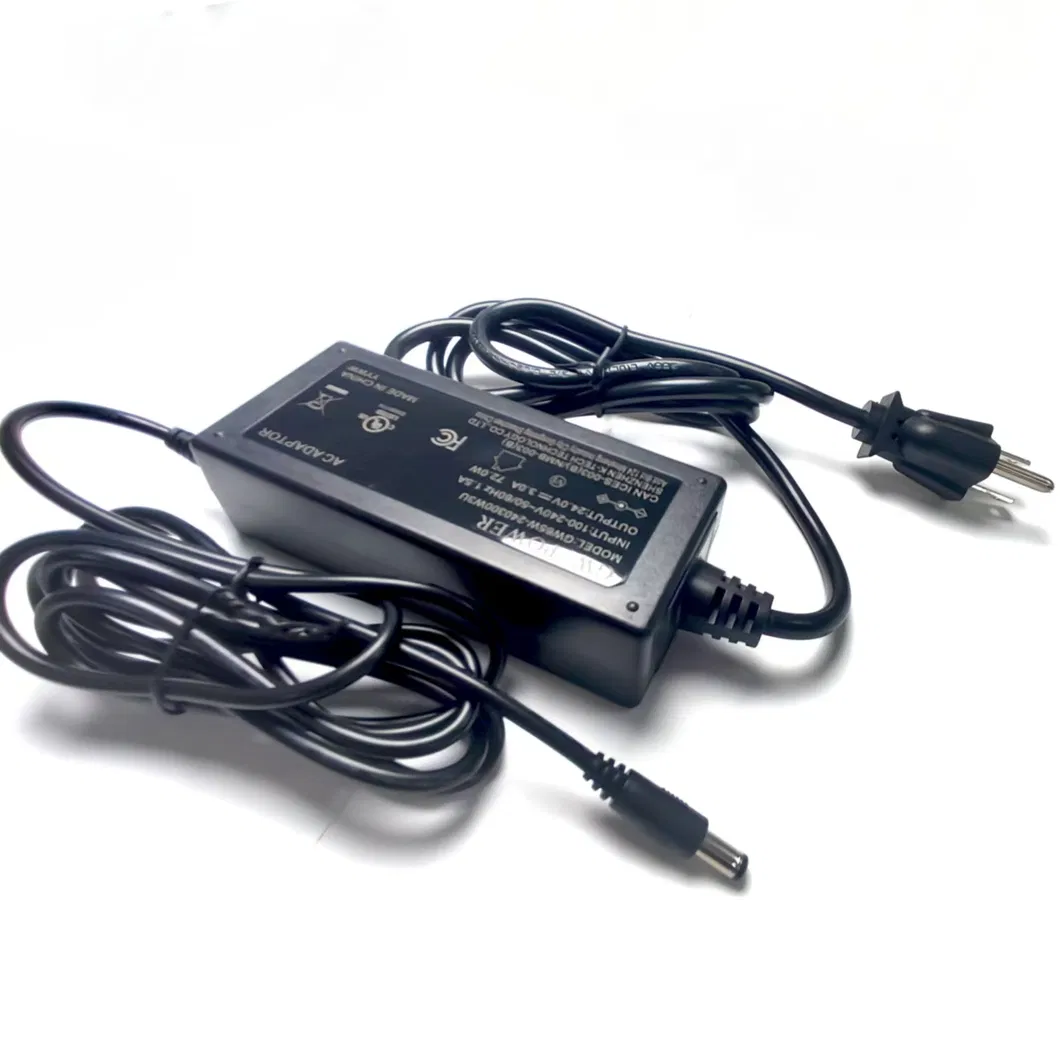

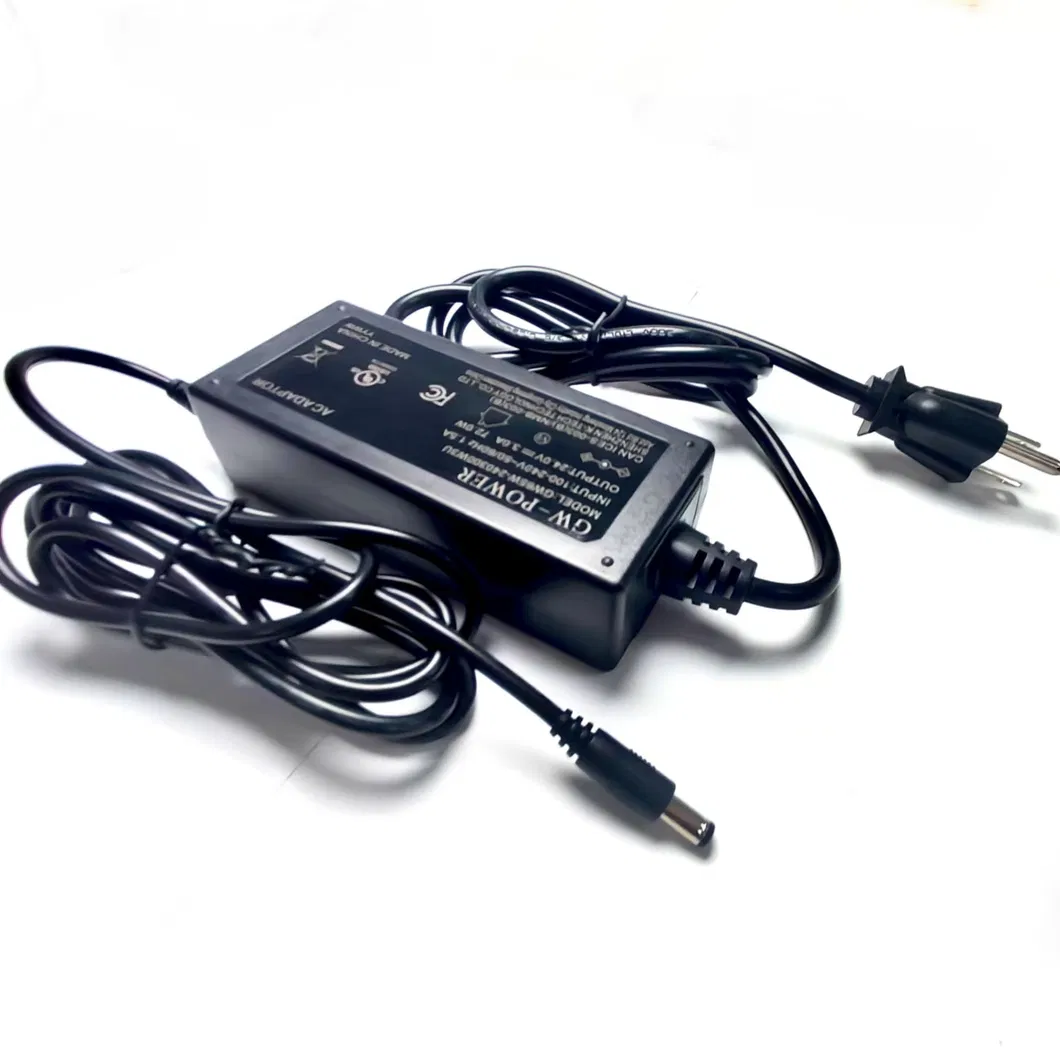

This standard external switch mode power supply adapter charger is designed for diverse indoor applications. Compliant with IEC62368 standards, it serves as a highly reliable replacement power supply certified by UL, cUL, FCC, CE, GS, UKCA, and PSE. It is ideal for ITE, ICT, and various consumer electronics.
Key features:
Meeting standard 62368, this universal power accessory is suitable for:
Energizes all electric devices running on up to 65W DC power.
| Input Characteristics | |
|---|---|
| Rated Input Voltage | 100-240Vac (Range: 90-264Vac) |
| Rated Input Frequency | 50/60Hz (+/- 3Hz) |
| Rated Input Current | 1.5 A Max. |
| Power Consumption (No Load) | 0.21W Max. |
| Output Requirements | |
|---|---|
| DC Output Voltage | 9V-25V |
| Rating Load Current | 0.01A-6A |
| Rating Output Power | 72.0W Maximum |
| Line Regulation | Less than ±3% |
| Load Regulation | Less than ±5% |
| Ripple and Noise | 150mVp-p Max. |
| Turn on Delay Time | 3 Seconds Max. |
| Region | Certification | Standard |
|---|---|---|
| Europe | GS / CE | EN 62368-1 |
| USA | UL / FCC | UL 62368-1 / PART15 |
| Canada | CUL | CAN/CSA C22 2 NO.62368-1 |
| Britain | UKCA | BS EN62368-1 |
| Japan | PSE | J62368-1 |
| Australia | SAA | AS/NZ 62368.1 |
Environmental Limits:
Operating Temperature: 0°C to +45°C
Storage Temperature: -20°C to +80°C
Humidity: 10%~90% (Non-Condensing)
Adapter Dimensions: 120 x 54 x 33mm | Weight: ≈250.0g

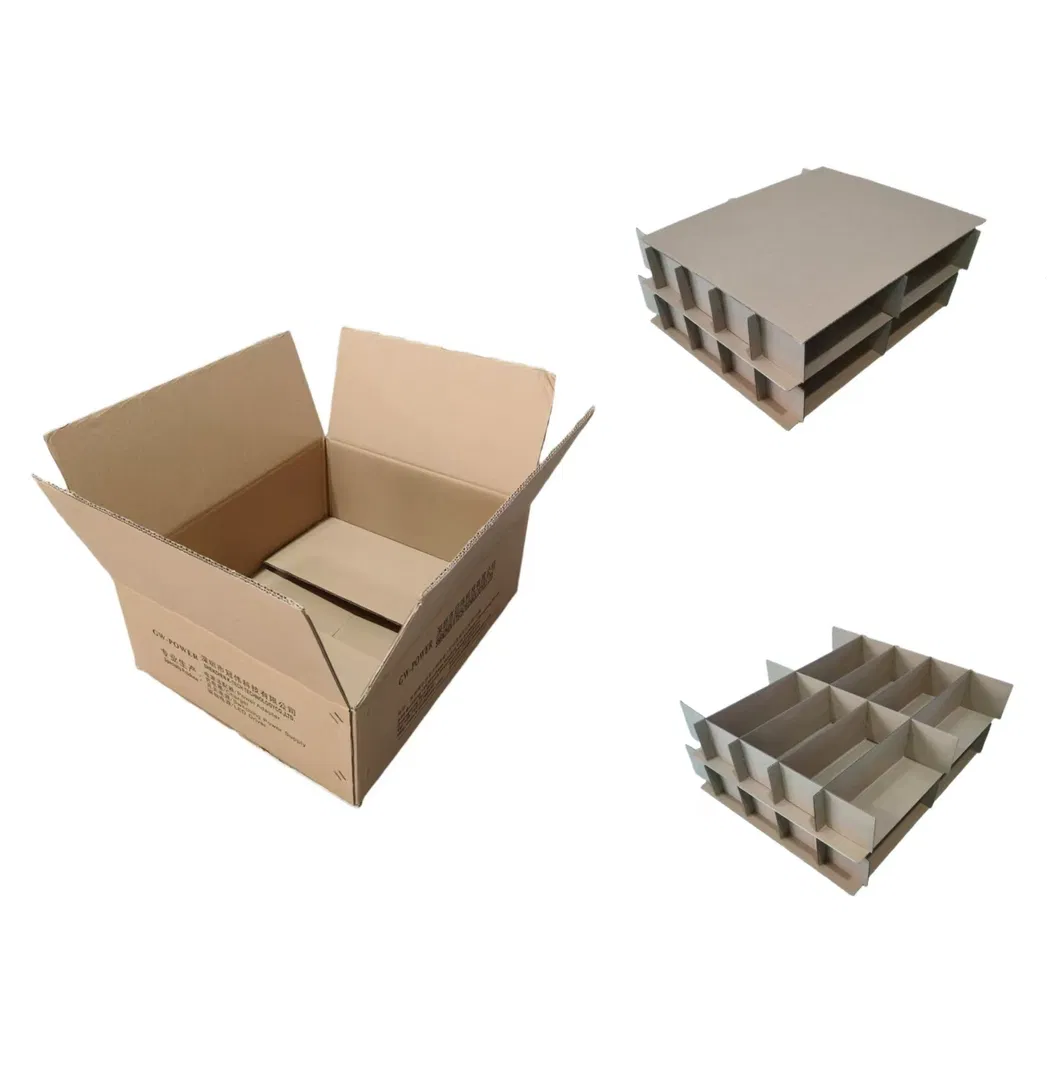

| Carton Size | 490x405x260mm |
| Quantity per Carton | 54pcs (3 Layers) |
| Gross Weight | ≈14.1kg |

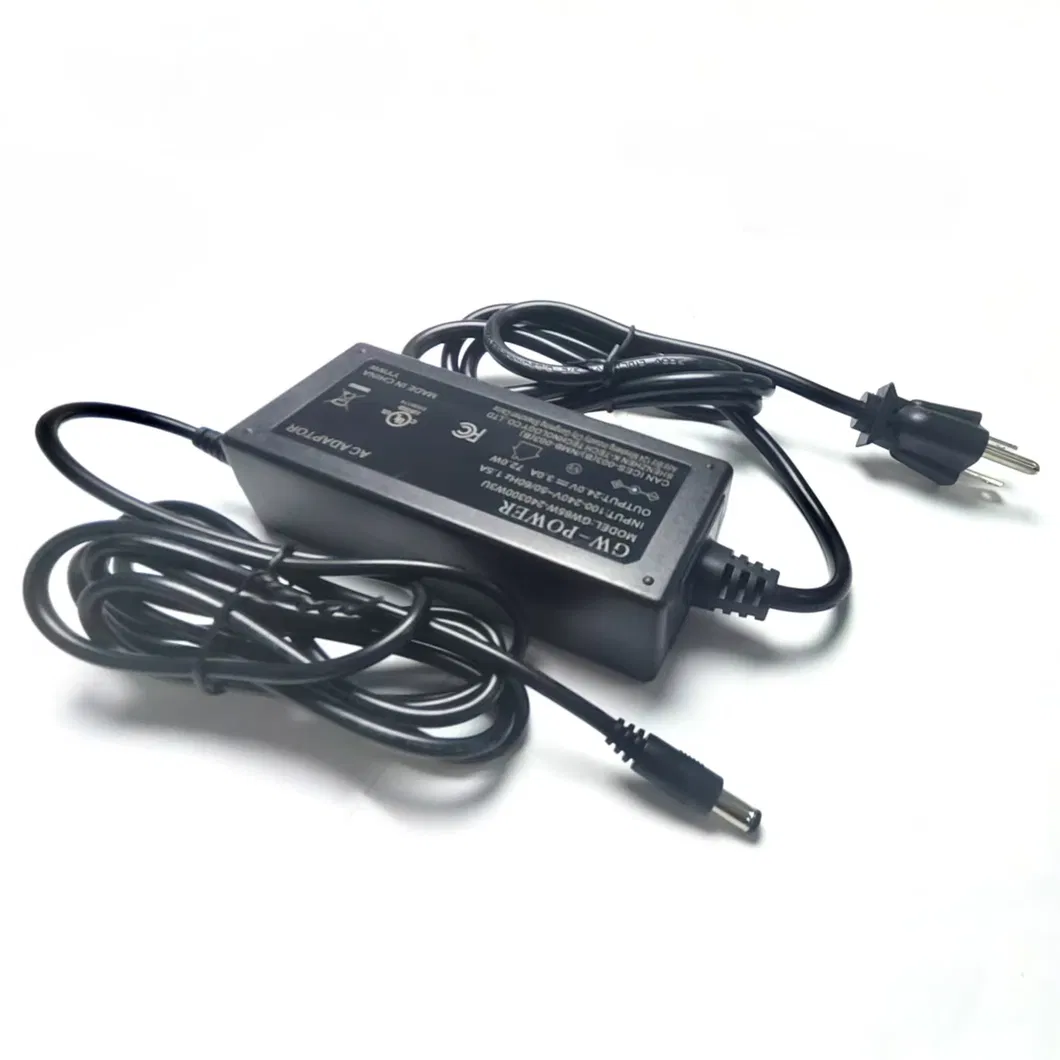

Define your power requirements. We offer flexibility for various specifications:
| Output Voltage (VDC) | Output Current (Amp) | Max Output Power |
|---|---|---|
| 9.0 - 11.9 | 0.01 - 6.0 | 54W |
| 12.0 - 17.0 | 0.01 - 5.0 | 65W |
| 17.1 - 25.0 | 0.01 - 4.2 | 72W |
Customizable Options: Inlet types (C6, C8, C14), DC cable length/type, DC connectors, and nameplate information.

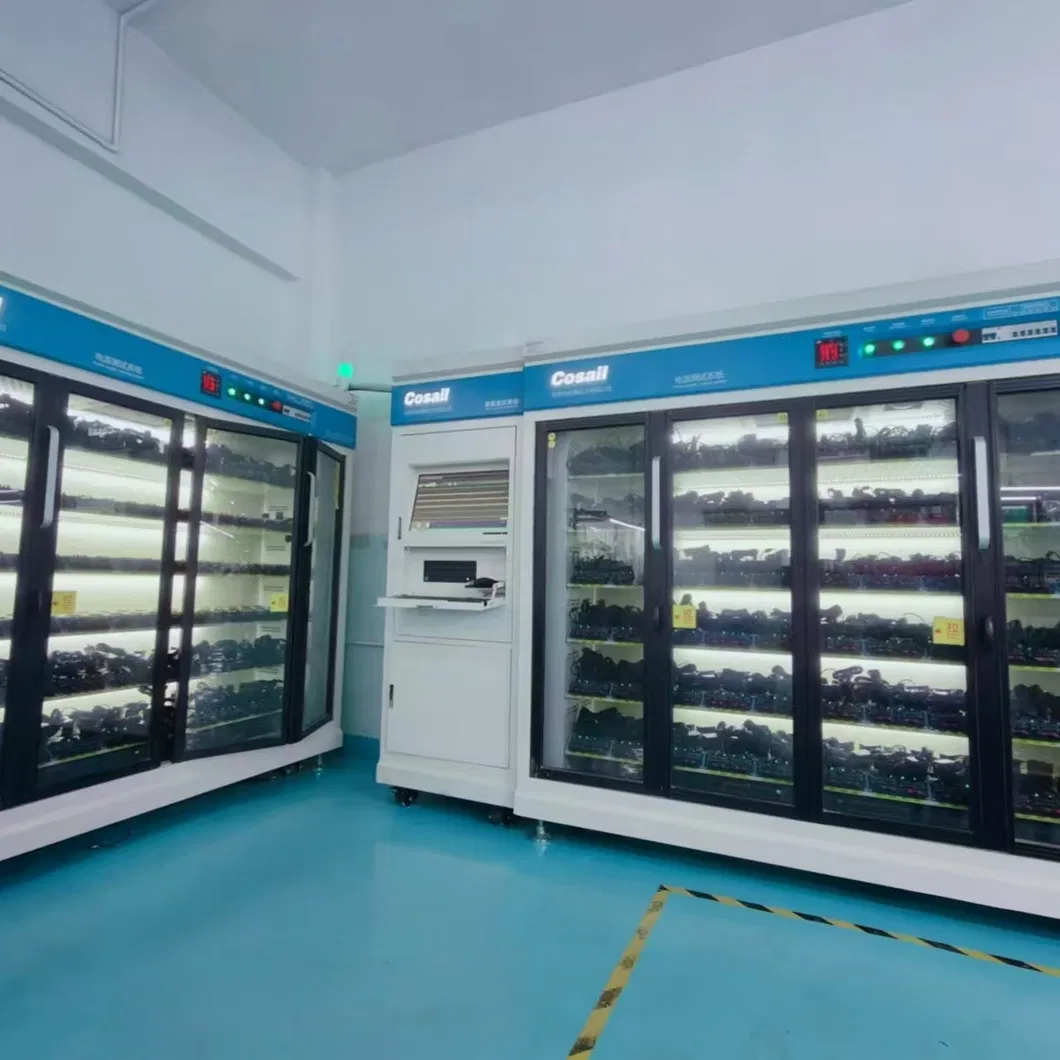

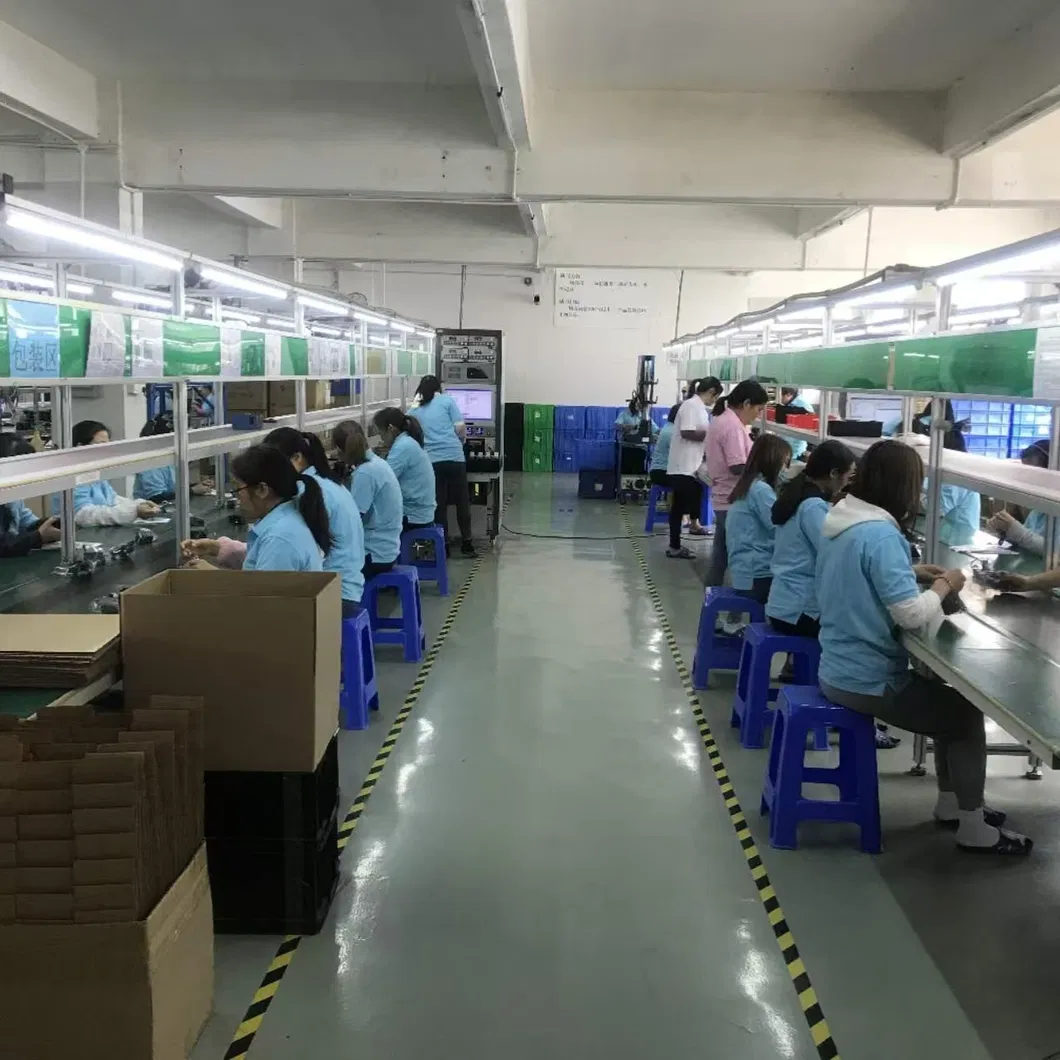

With over 15 years of experience under ISO9001 criteria, we provide standardized and customized power solutions from 1W to 360W. Our facility ensures every product meets strict quality and safety benchmarks to elevate your competitiveness.
Thank you for browsing. Together, we can forge a bright future.
