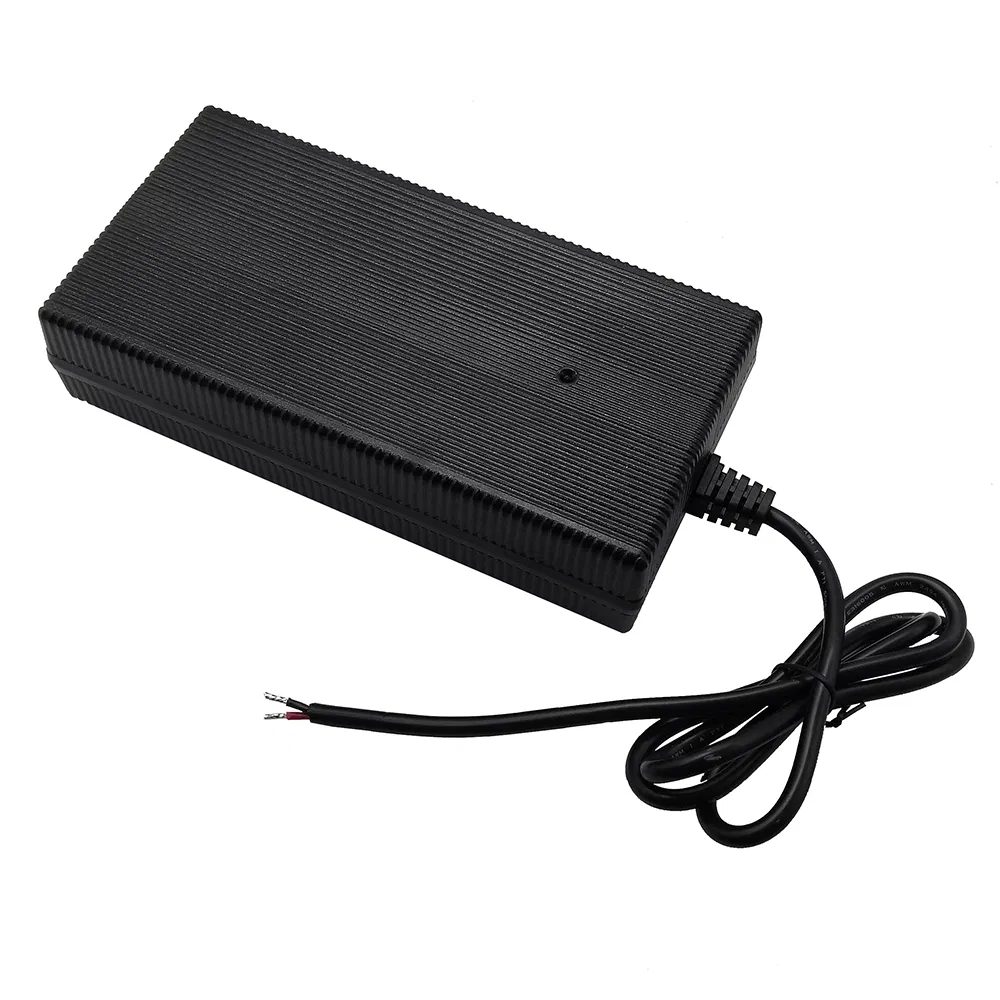

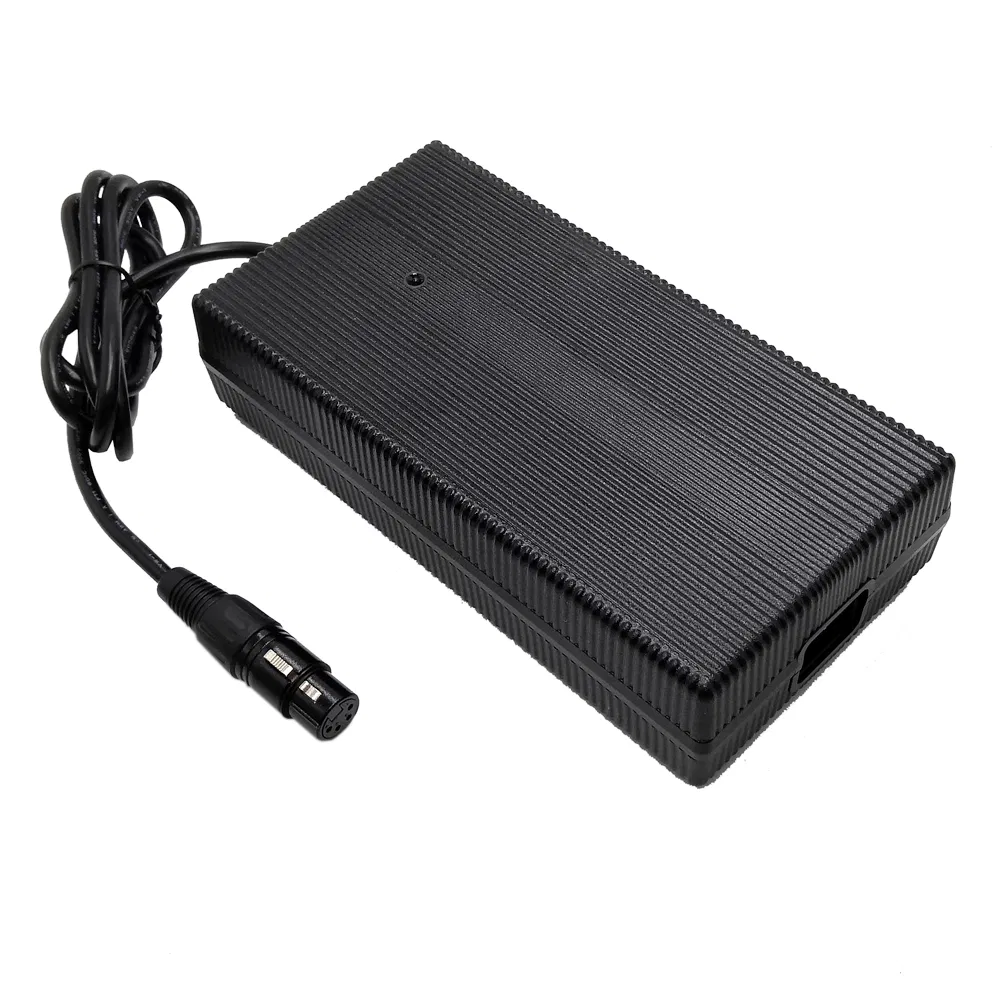

ETL PSE GS Approved Fanless 58.4V 5A Fast LiFePO4 Ebike Battery Charger for 16s 48V 48 Volt LiFePO4 Battery Charger

1 / 5

ETL PSE GS Approved Fanless 58.4V 5A Fast LiFePO4 Ebike Battery Charger for 16s 48V 48 Volt LiFePO4 Battery Charger

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.FY58005000

CertificationTUV, RoHS, ISO9001, CCC

Item Name58.4V 5A 48V Fast Charge LiFePO4 Battery Charger

Internal StructureLinear Model

TypeOEM & ODM

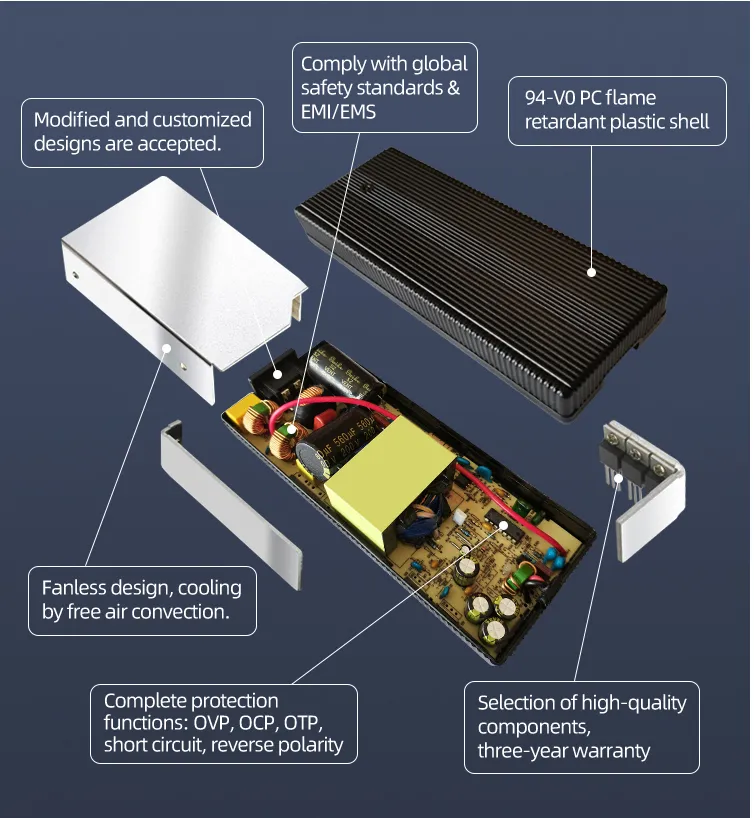

FeatureFanless Design

Efficiency>92%

ProtectionsShort Circuit, Overload, Overvolt

ApplicationElectric Scooters, E-Bikes, Drones, etc.

Dimensions210*108*52mm

Product Description

High Efficiency Fanless 58.4V 5A Fast LiFePO4 Battery Charger

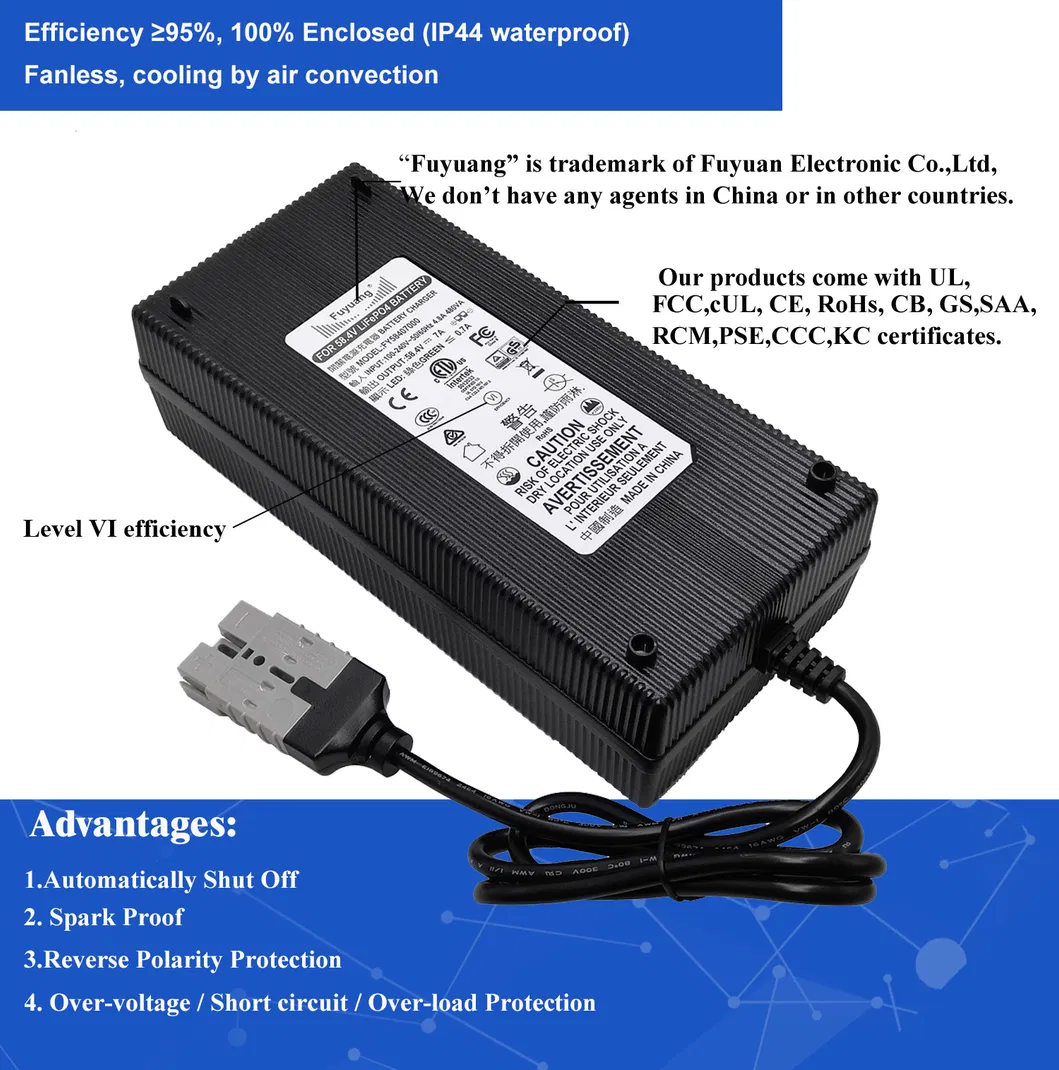

Key Advantages

Global Certifications: UL (UL1012), FCC, cUL, CE, RoHs, CB, GS(IEC-60335), Reach, SAA, RCM, PSE, CCC, KC.
Automatic identification circuit for optimized charging.
Safety features: Automatically shut off, Spark Proof, and Reverse Polarity Protection.
Protections: Comprehensive Short Circuit / Over Load / Over Voltage protection.
3-Stage Charging Mode: Constant Current - Constant Voltage - Trickle charging / Shut Down.
LED Status Indicators: RED for charging, GREEN for fully charged.
Durable Construction: Fireproof PC plastic case.

Technical Parameters

AC Input	100-240V, 50/60HZ, 3.5A Max, 350VA
AC Inlet	IEC320-C14, C6, C8, Fixed AC Power Cord
DC Plug	Anderson connector, 5.52.1, 5.52.5, Canon connector, XLR, Inline plug, XT60, TX40/60, etc. (Customizable)
Housing Material	TEIJIN brand PC material, Dimension: 1788046MM, Black
Operating Temp	-29ºC ~ +45.5ºC
MTBF	30,000 hours full rated load at 25ºC

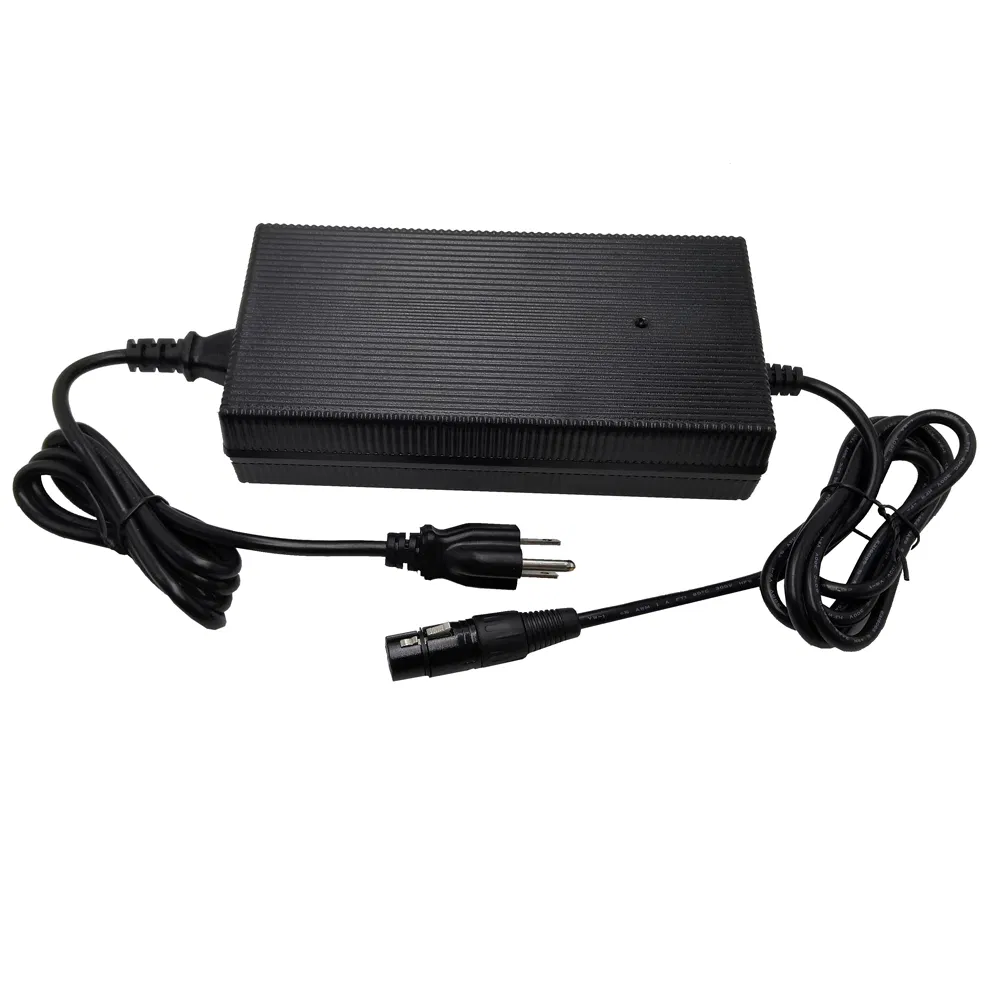

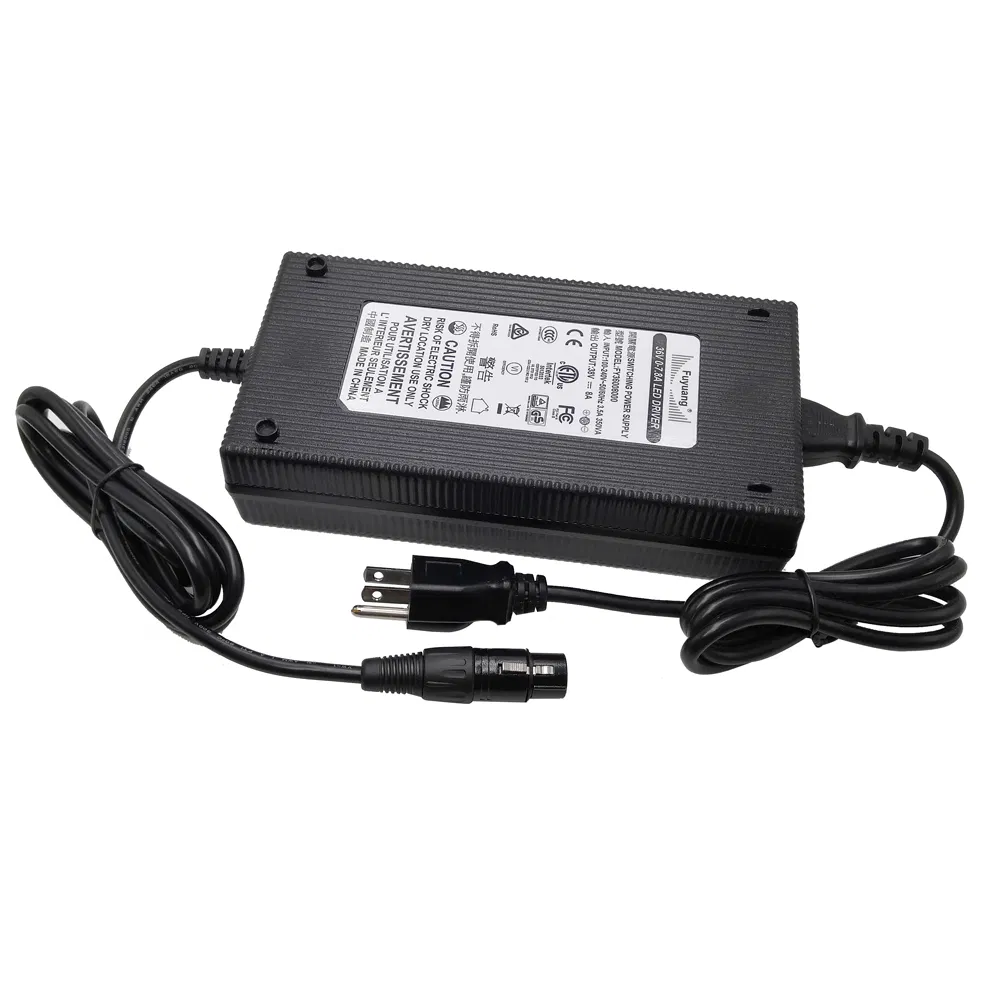

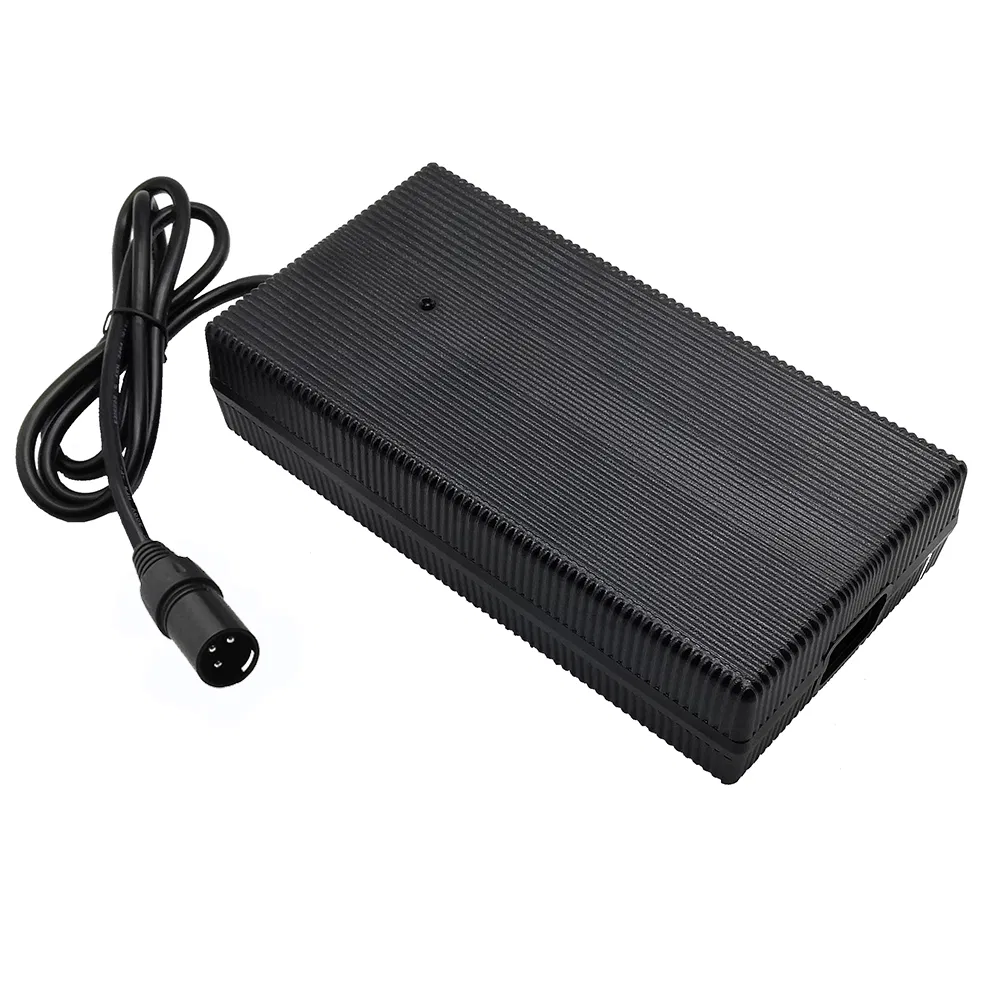

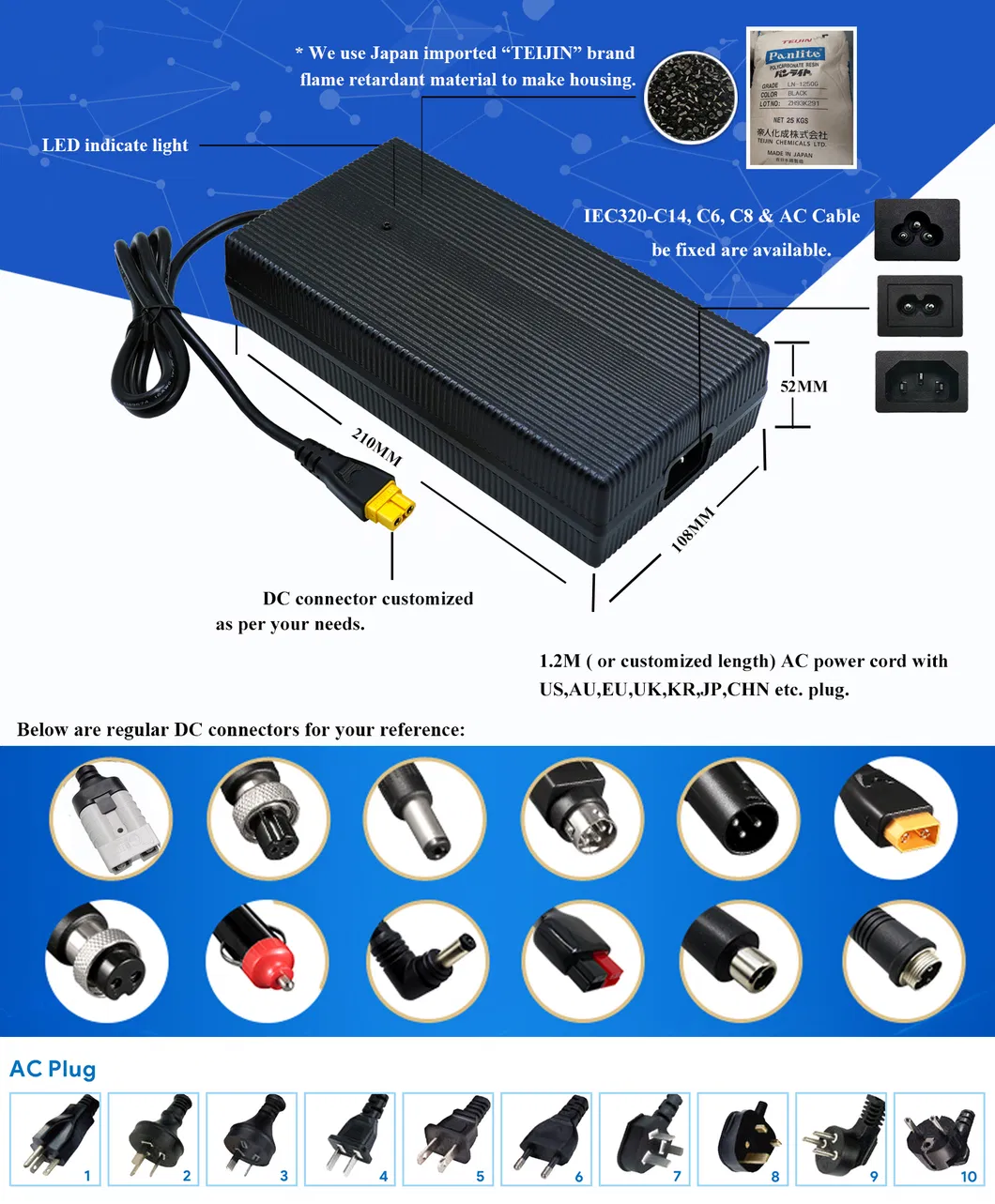

Product Display

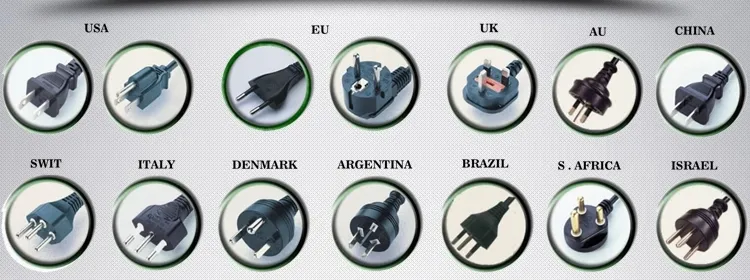

Worldwide Plug Selection:

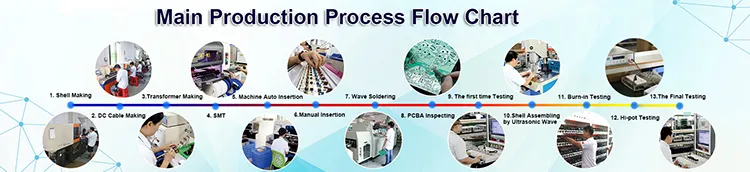

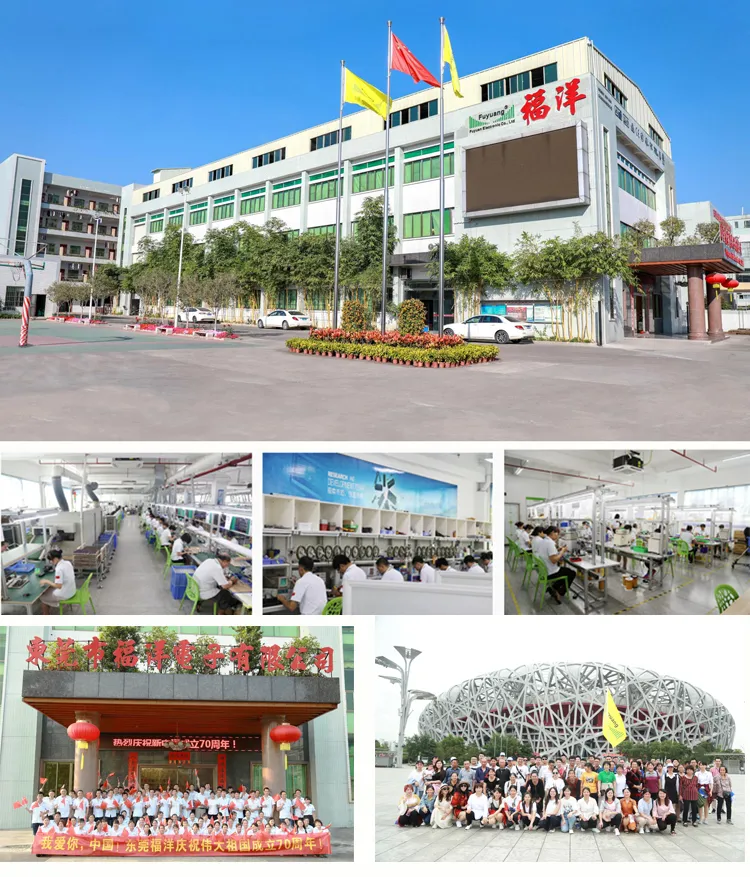

Manufacturing Excellence

A professional manufacturer established in 2005, specializing in Battery Chargers, Power Adapters, and LED Power Supplies. The production facility is ISO9001, ISO14001, and QC080000 certified, operating within a 6800 square meter factory. With a senior engineering team, new product development cycles can be as short as 10 days.

Monthly production capacity reaches 500,000 units, serving over 5000 global customers with high-power solutions ranging from 3W to 1000W.

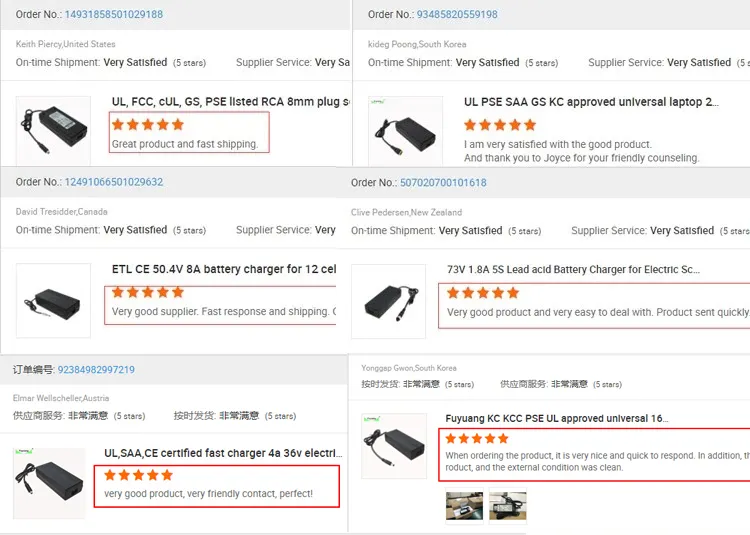

Partners & Feedback

Frequently Asked Questions

Q1: Which battery type is this charger compatible with? A: This charger is specifically designed for 48V (16S) LiFePO4 battery packs commonly used in e-bikes and scooters.

Q2: Is this charger noisy during the charging process? A: No, it features a fanless design that ensures silent operation while maintaining high heat dissipation efficiency.

Q3: How do I know when the battery is fully charged? A: The charger includes an LED indicator: Red indicates the battery is currently charging, and Green indicates it is fully charged.

Q4: What safety protections are included? A: The unit features Short Circuit, Over Load, Over Voltage, and Reverse Polarity protections for maximum safety.

Q5: Does this charger have international safety certifications? A: Yes, it holds global certificates including UL, CE, GS, FCC, PSE, KC, and SAA, making it suitable for worldwide use.

Q6: Can the DC output plug be customized? A: Yes, we offer various DC plugs such as Anderson, XLR, Cannon, XT60, and more to fit your specific device requirements.
