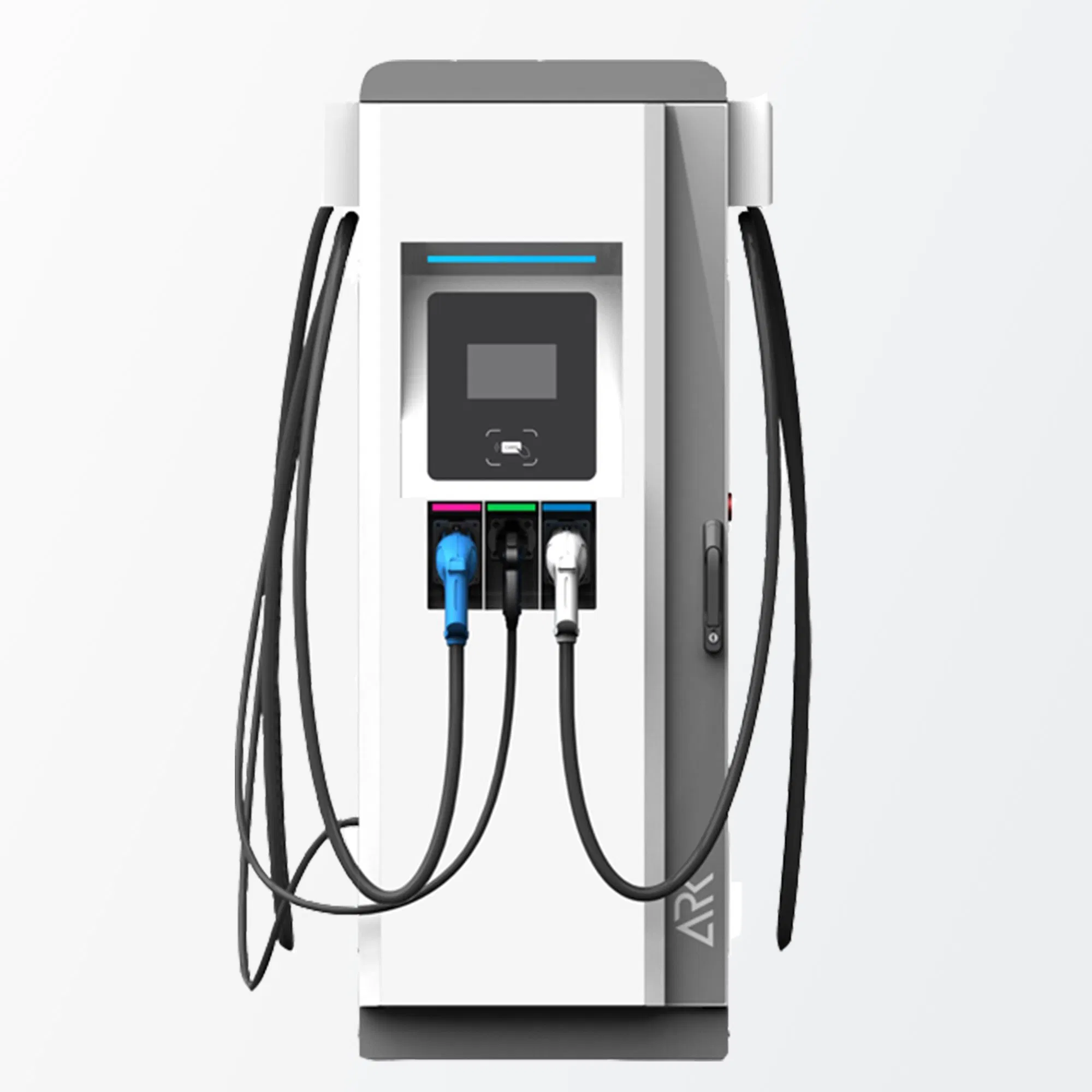

EV Charging Station DC Input Source with Triple Plug Solar Type
EV Charging Station DC Input Source with Triple Plug Solar Type
EV Charging Station DC Input Source with Triple Plug Solar Type
EV Charging Station DC Input Source with Triple Plug Solar Type
EV Charging Station DC Input Source with Triple Plug Solar Type
1 / 5
EV Charging Station DC Input Source with Triple Plug Solar Type
EV Charging Station DC Input Source with Triple Plug Solar Type
EV Charging Station DC Input Source with Triple Plug Solar Type
EV Charging Station DC Input Source with Triple Plug Solar Type
EV Charging Station DC Input Source with Triple Plug Solar Type

EV Charging Station DC Input Source with Triple Plug Solar Type

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

●

Basic Information

Model NO.
EF160
Ocpp
Ocpp1.6j Supported
Screen
7 Inch Touch Screen
Protection Grade
IP54, IK10
Charging Type
Mode 4
Standard
IEC 61851-1, IEC 61851-23, CHAdeMO
Type
Fast EV Charging Station
Certification
CE, TUV
Warranty
12 Months
Capacity
1000 Units Per Month
●

Product Description

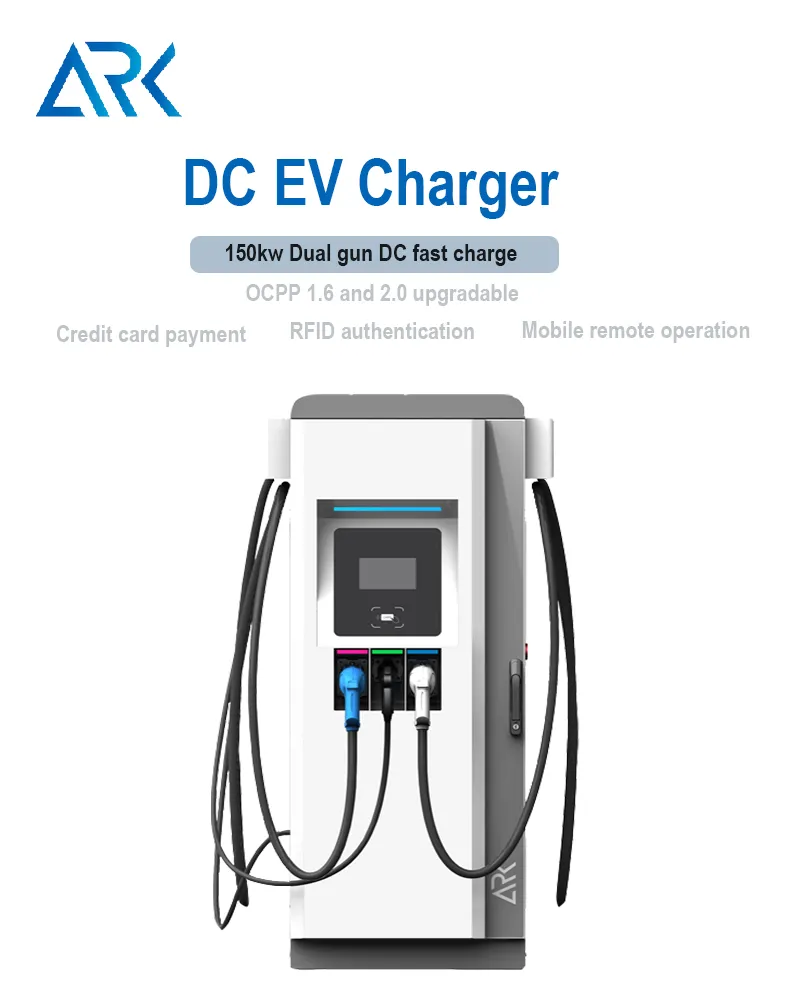

EV Charging Station 1

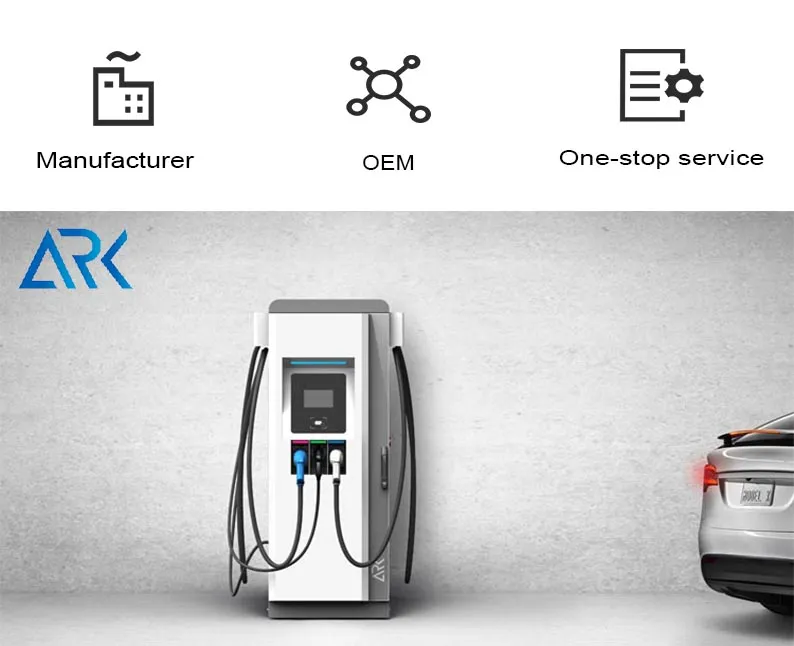

EV Charging Station 2

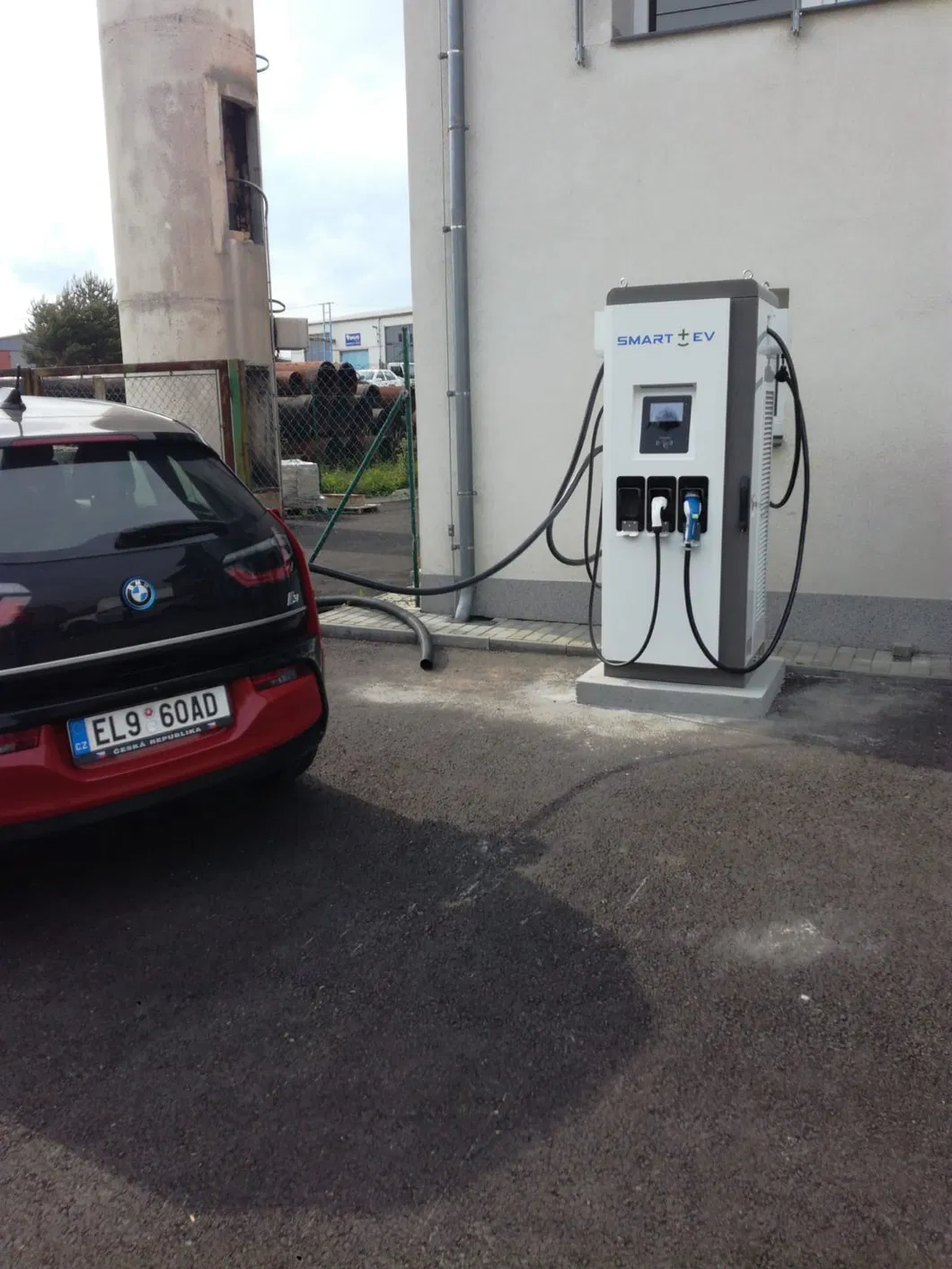

EV Charging Station 3

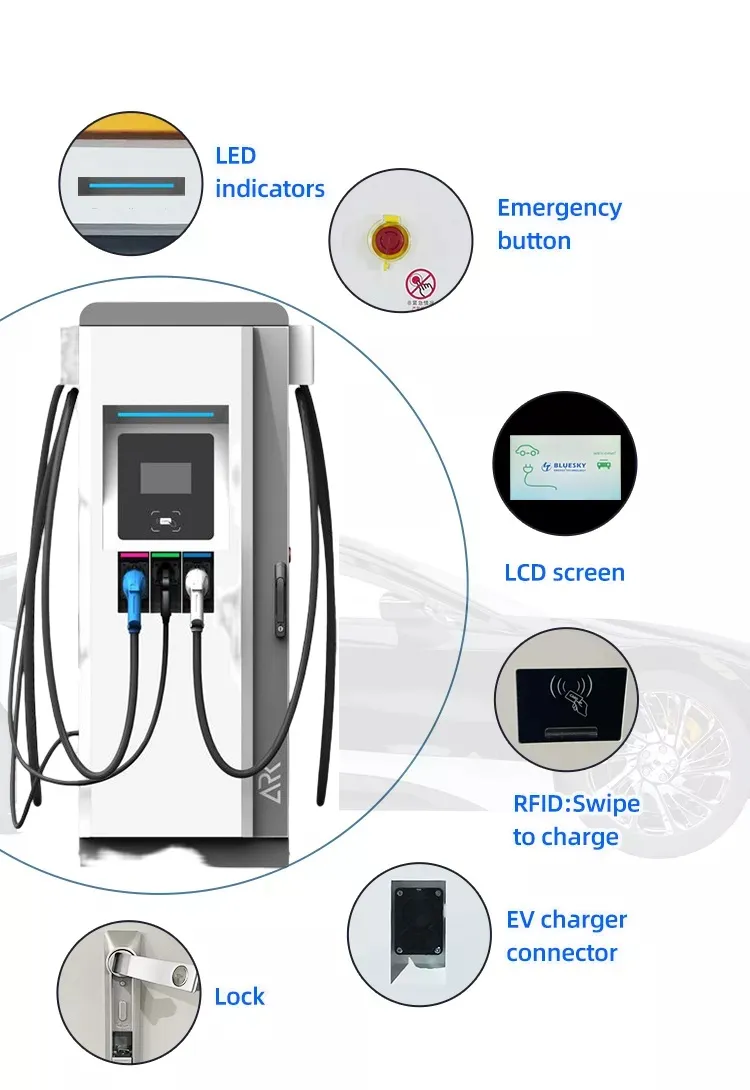

EV Charging Station 4

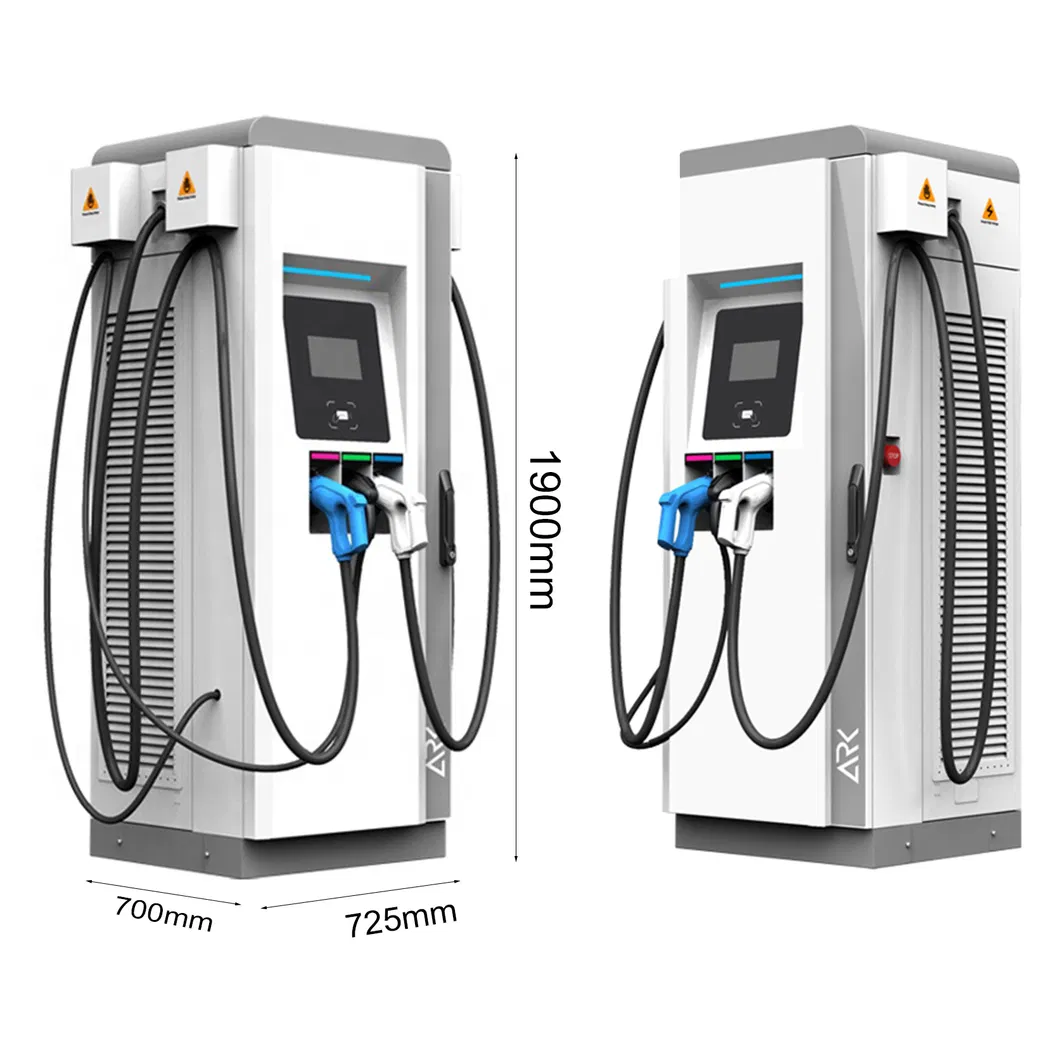

EV Charging Station 5

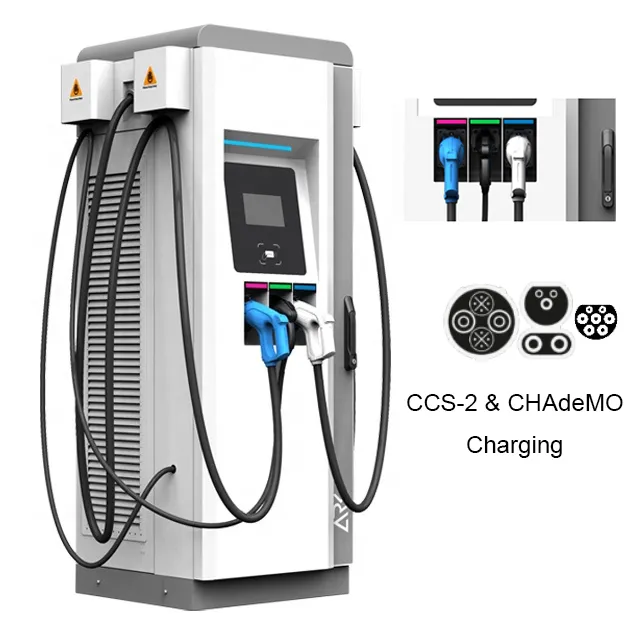

EV Charging Station 6
●

Product Parameters

Category Parameters Detail
Electrical Specifications Input voltage 400Vac 3-phase
Input frequency 50Hz/60Hz
Rated power 60kW or 120KW DC
Output voltage CCS: 200-1000VDC, CHAdeMO: 200-500VDC
Output current CCS: 0-200A, CHAdeMO: 0-125A
Efficiency ≥ 94%
Power factor ≥ 0.99
Structure Housing material Metal case
Dimension 1900 x 725 x 700mm
Protection Grade IP54
Cable length 5m
●

Professional Manufacturing

Manufacturing Process
●

Packaging & Shipping

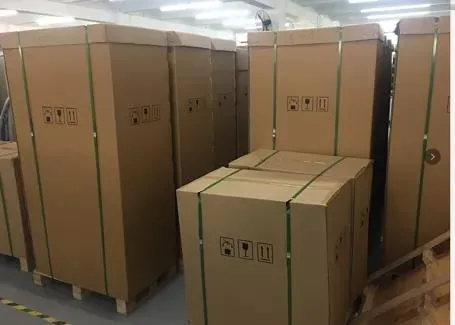

Package 1

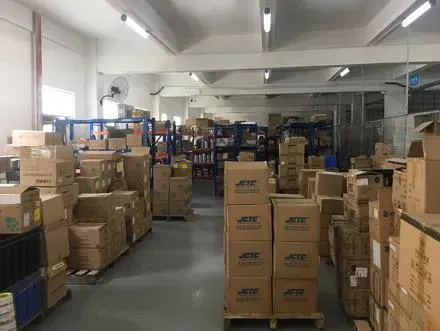

Package 2

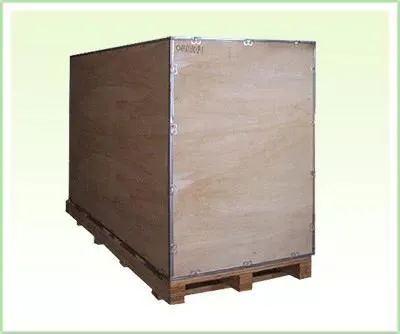

Package 3
●

Frequently Asked Questions

Why choose us as your preferred EV Charger supplier?
Our professional technical team and long-term industry vision ensure a leading position. We offer a wide range of products with international standardization design and smart back-end services. Our products have passed rigorous laboratory tests and application scenario validations.
Do you have experience in overseas charging station projects?
Yes, we are pioneers in overseas projects. We have collaborated with power companies in the UK, charging operators in the US (from LA to San Francisco), and major automakers like GM to provide DC fast charging services.
What are the advantages of your products?
Our chargers feature telecom-level design, supporting multiple standards (CCS-1/2, CHAdeMO, GB/T). We prioritize quality with wide voltage ranges, advanced modular design, and superior temperature adaptation.
Can you explain the differences in global DC fast charging standards?
There are 5 main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla (Proprietary). Our equipment is designed to be compatible with these major global requirements.
Does higher output power always mean faster charging?
Not necessarily. Charging speed is limited by the vehicle's battery capacity. However, high-power chargers are significant as they support dual connectors to charge two vehicles simultaneously and provide future-proofing for improved battery technology.
How is after-sales technical support handled?
We provide comprehensive technical training, including written materials and videos. Our team helps customers master parts replacement and maintenance. For urgent situations, professional technicians are available for support.
