Basic Specifications
Model NO.CXE-D120K(CCS)1000
LocationPublic Use
InterfacesMultiple Charges
Start ModeRFID, App, Card
Package Size93x70x177 cm
Gross Weight200.00kg
Lead Time30 Days
OriginChina
Product Overview
⚡

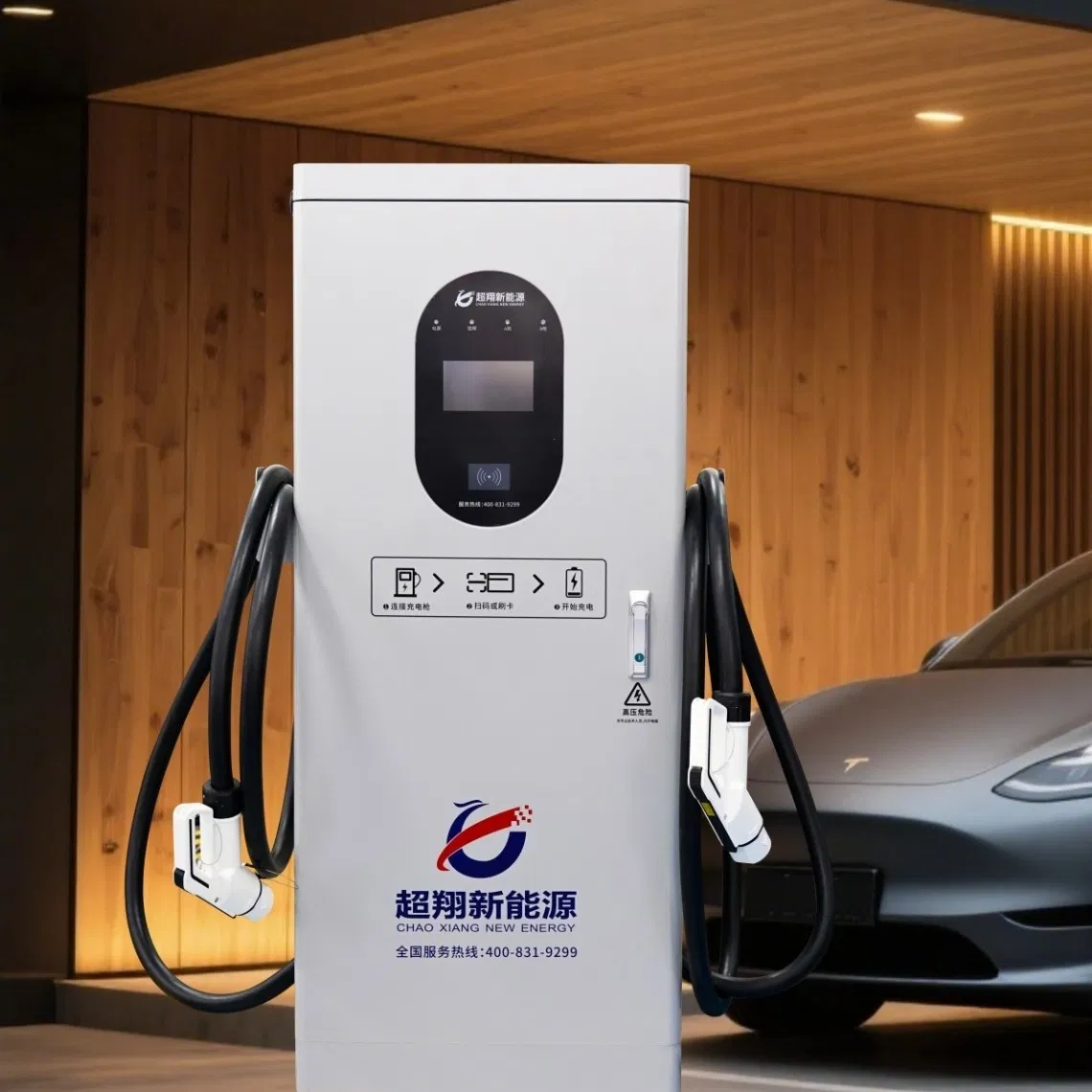

High Efficiency Fast Charging
Dual outputs allowing simultaneous charging with output up to 120kW. Constant power from 300~1000V voltage ensures less heat and higher stability.
🌐
Intelligent Control System

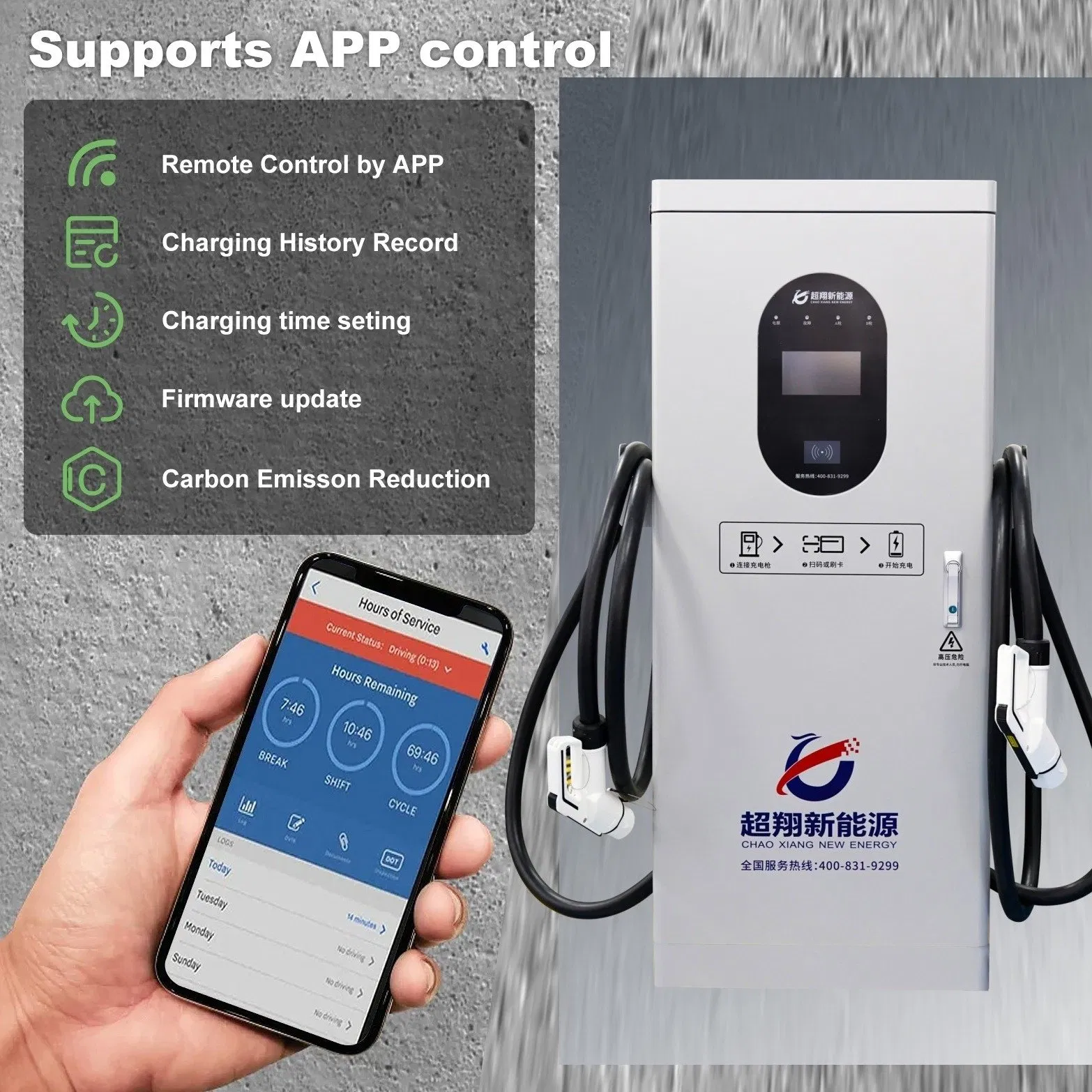

Supports Ethernet and 4G communication with OCPP protocol integration for smart network management.
🛡️
Safety First Design

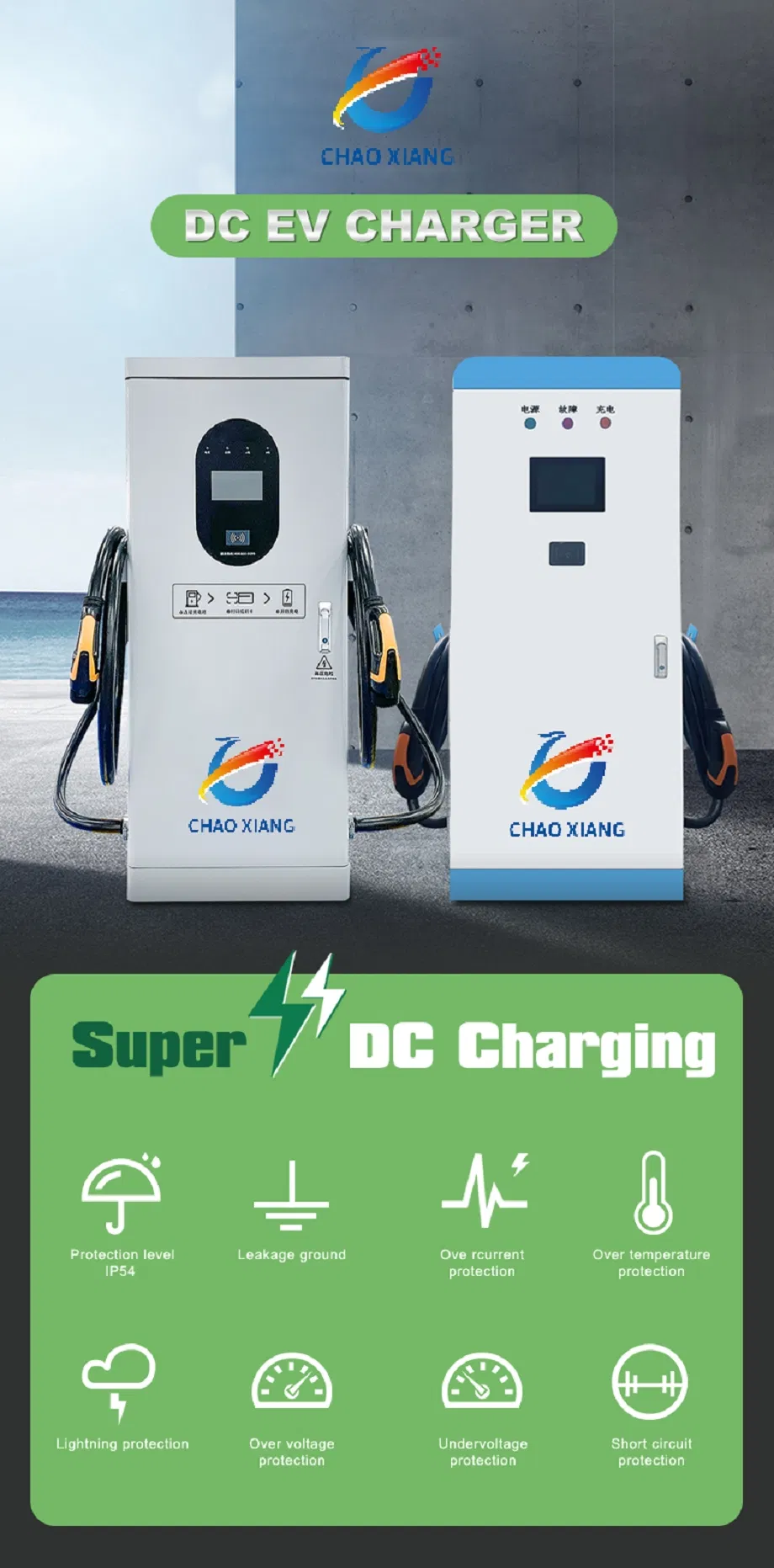

IK08 metal case with Type A RCD protection. Features over 10 safety protections including surge, short-circuit, and over-temperature.

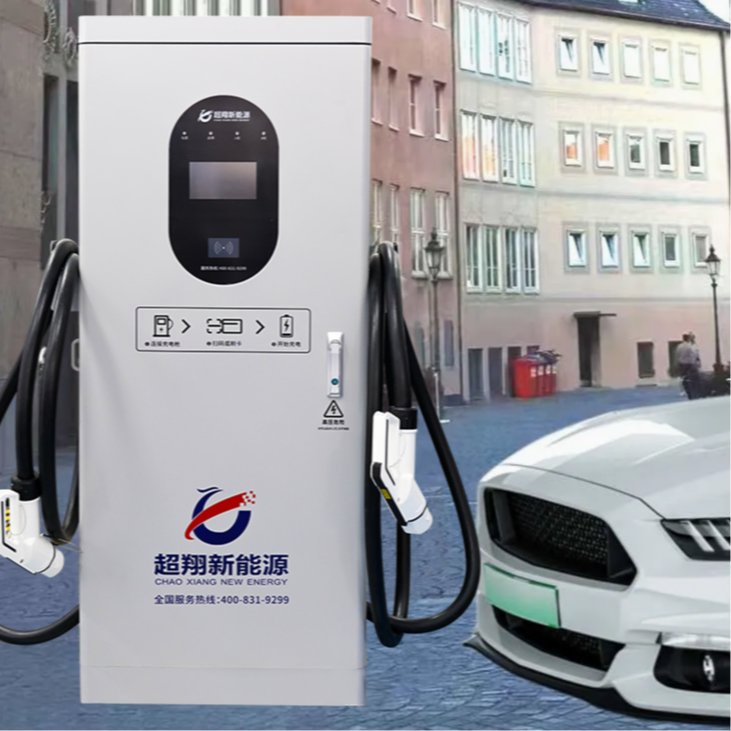

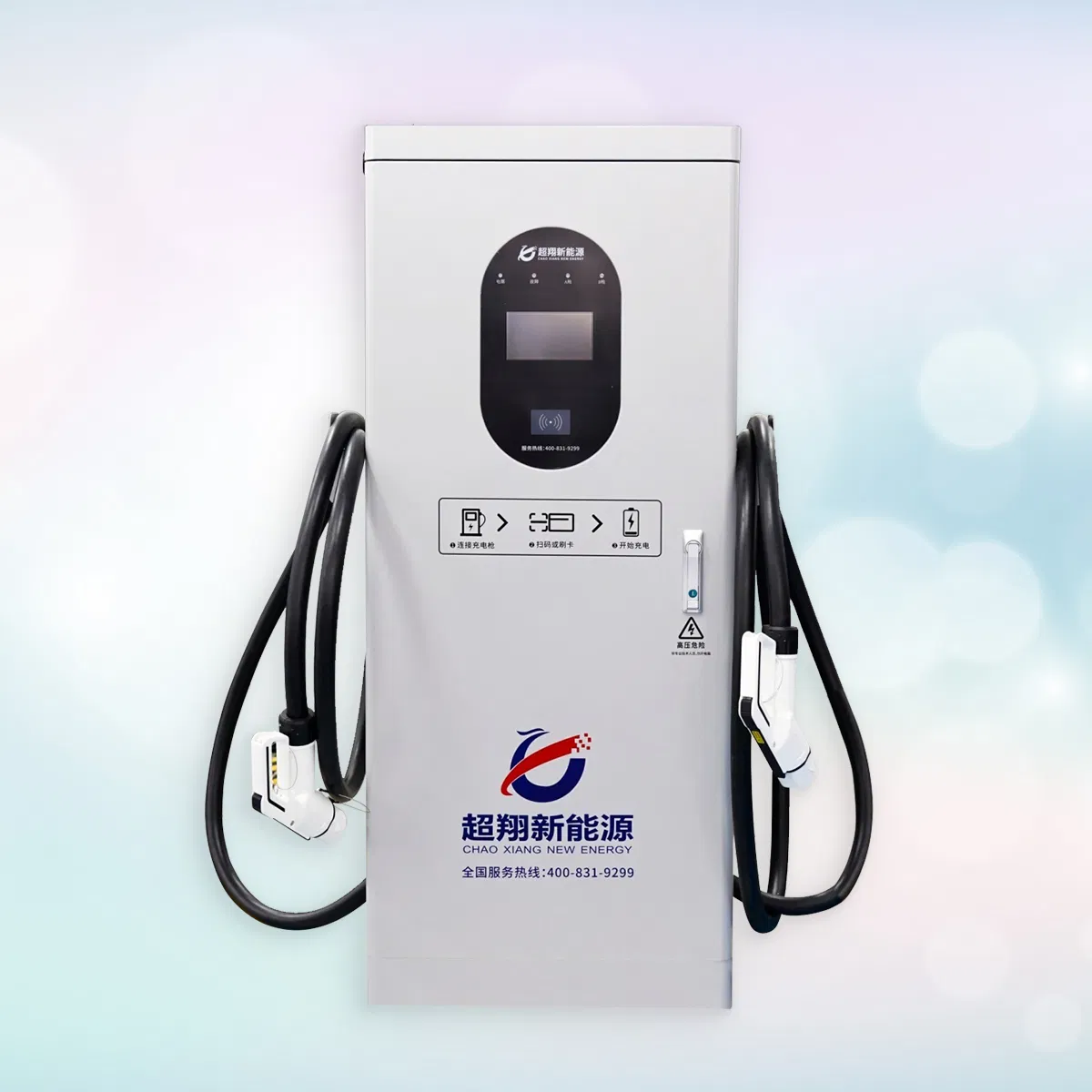

EVSE 60kW-240kW DC charger with CCS2/GBT connector fast charging station rapid car charger EV charging pile.
Technical Specifications
| Parameter |
CXE-D60K |
CXE-D120K |
CXE-D180K |
CXE-D240K |
| Output Power | 60kW | 120kW | 180kW | 240kW |
| Input Voltage | AC380V±15% (50/60Hz) |
| Output Voltage | 200-1000VDC |
| Current Range | 0~260A | 0~500A | 0~500A | 0~500A |
| Efficiency | ≥97% |

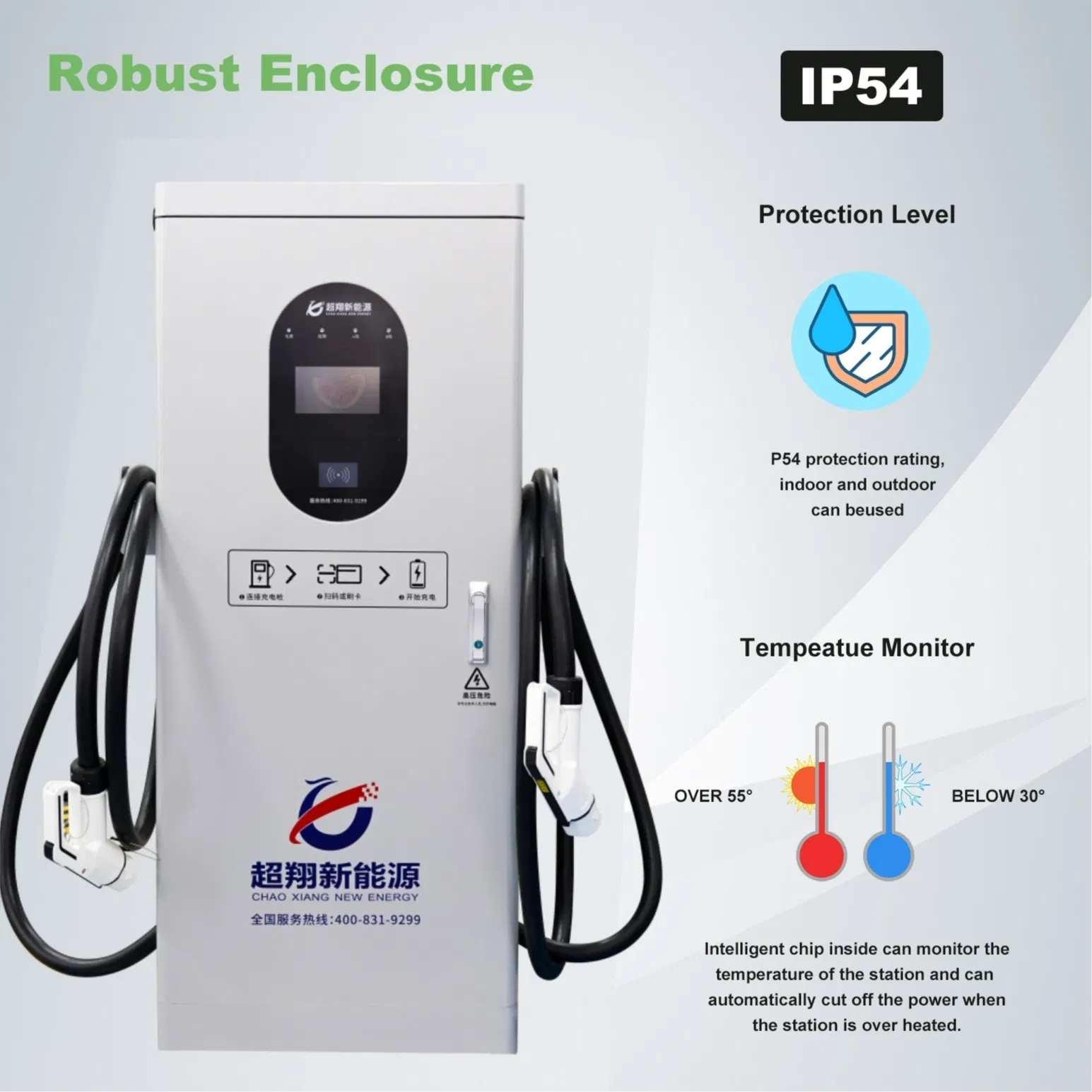

| IP Grade | IP54 |
| Display | 7-inch color touchscreen |

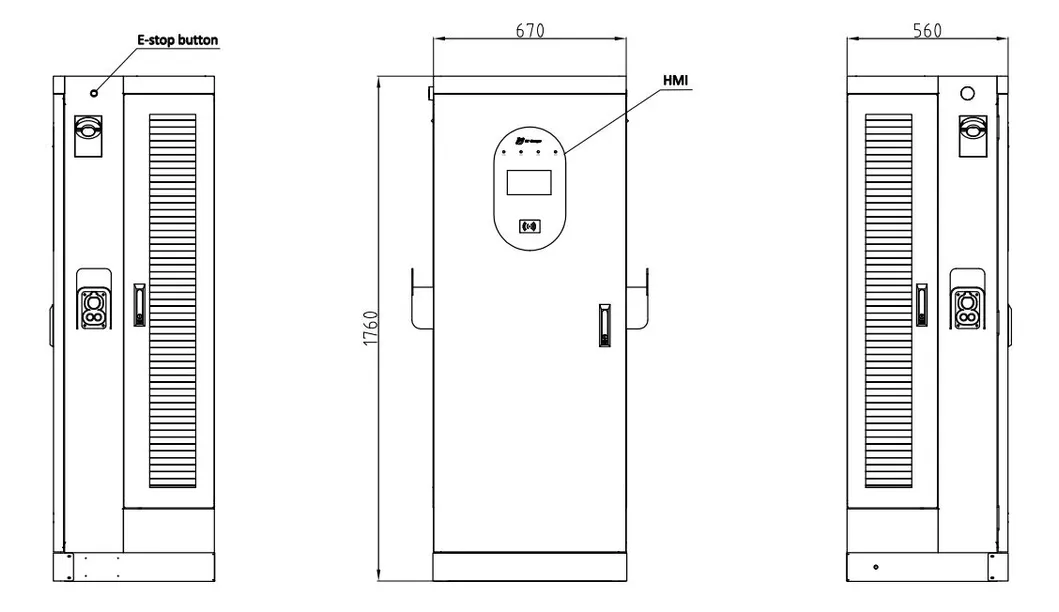

| Dimension | 670MM * 560MM * 1760MM |
Manufacturing Excellence
| Compliance |
|---|
| Certificate | CE / ISO9001 / ISO14001 |
| Standard | DACE231020010RL |
| Issued By | Professional Testing Agency |
| Shipping Details |
|---|
| FOB Port | Shanghai |
| Lead Time | 10-30 Days |
| Packaging | Environmentally friendly export carton |
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a source factory specializing in EV chargers with over 100 patented technologies and national high-tech enterprise recognition.
How is the product quality guaranteed?
We conduct pre-production samples before mass production. All mainboards are tested before assembly, and each charger undergoes a full functional test before shipping.
What is the typical lead time?
Lead time generally ranges from 5 to 30 working days, depending on the specific quantity and current production scheduling.
How long does it take to fully charge a car?
Charging time = Battery Capacity (kWh) / Power (whichever is lower between the charger and the car's On-Board Charger). For example, a 40kWh battery with a 7kW OBC takes approximately 5.7 hours.
What is the warranty period for your chargers?
Standard warranty is 1-2 years. Custom requirements regarding warranty extensions can be discussed with our service team.
Do you support logo and color customization?

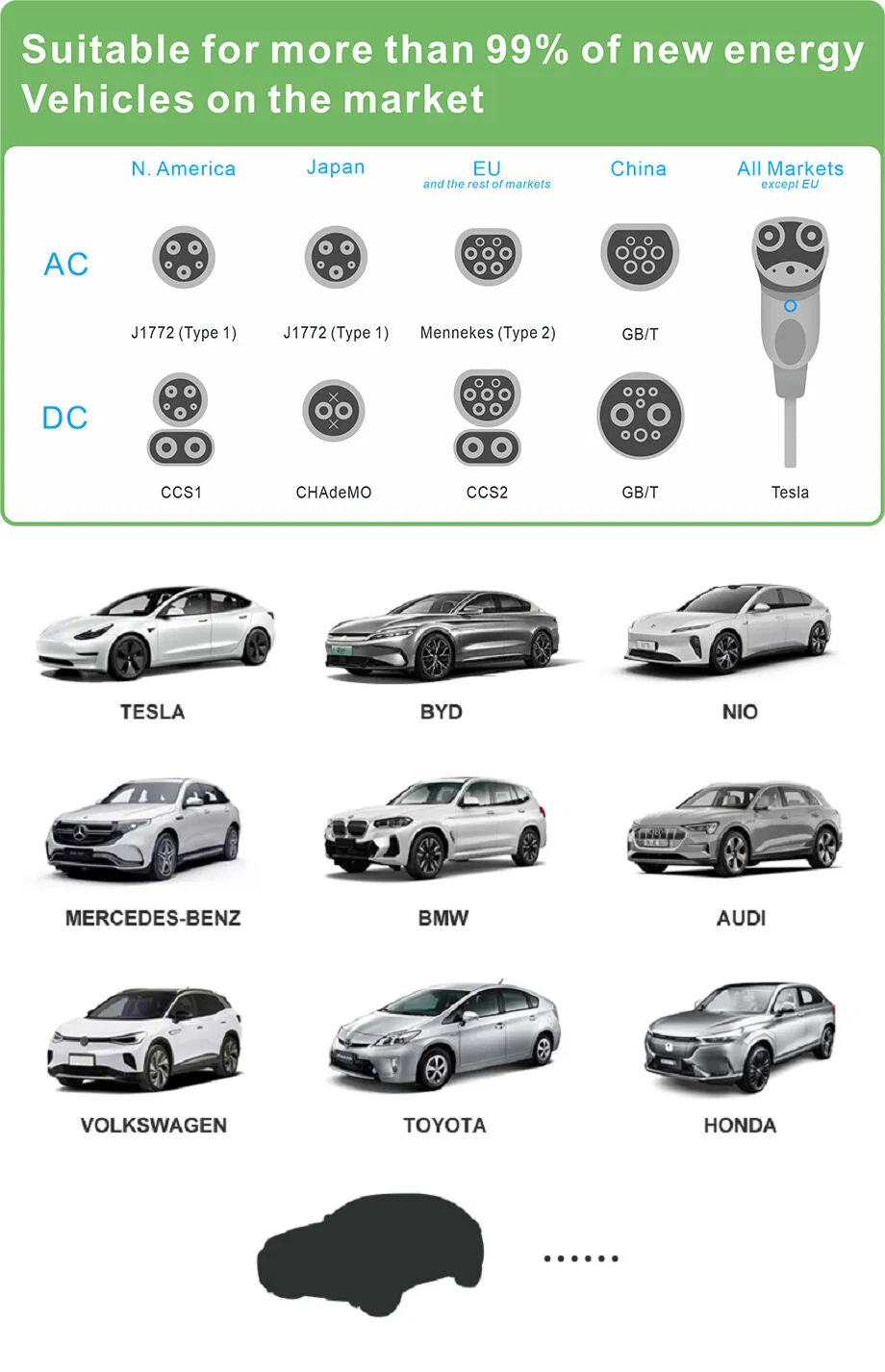

Yes, we support OEM/ODM services including custom logo printing, customized painting colors, and specific cable lengths or plug standards (GB/T, US, EU, JPN).
